At ElisaCustom, every custom project tells a story. Some are straightforward. Others require us to push boundaries, solve problems, and continuously improve.
This is the story of Benjamin‘s order — a journey that began with trust, evolved through innovation, and ended with a product we are truly proud of.
Benjamin came to us with a clear frustration: his previous supplier’s products had serious quality issues. He needed a partner who would take quality control seriously — someone who would check every detail before shipment and ensure his project would not fail again.
He provided us with a 4‑page quality inspection checklist and asked that we video‑record every step of the process for his confirmation. We didn’t hesitate. We followed his checklist meticulously, documented everything, and kept him informed throughout.
Watch the testing process: See the video on YouTube →
The result was a complete success. Benjamin was extremely satisfied — and more importantly, he gained trust in our commitment to quality. That trust has grown into an ongoing partnership, with more orders following.
The Beginning: From Sample to Bulk Order
Benjamin approached us with a vision: he needed a high-quality, reliable pixel point light for an outdoor architectural project. After reviewing our product lineup, he decided to test our 20mm RGBW pixel point light (XXA-D20) featuring the UCS8904 IC and SMD3535 RGBW LEDs.
The sample testing phase was successful. Benjamin was impressed with:
The color accuracy and dynamic response of the UCS8904 + RGBW combination
The IP68 waterproof rating — crucial for his outdoor application
The 180° beam angle and clear PC cover for uniform light distribution
After thorough testing, Benjamin placed his bulk order with confidence.
The Challenge: Improving Waterproof Performance
During production, our quality control team identified a critical area for improvement: glue leakage around the LED module housing.
While the product already met IP68 standards, we believed we could do better. We asked ourselves:
“Is it good enough for Benjamin’s project? Can we make it even more reliable?”
The answer was clear: we could improve.
Our Solution: Enhanced Waterproofing & Quality Refinement
Our engineering team tackled the glue leakage issue head-on. We:
Improvement | Action Taken |
|---|---|
Enhanced sealing process | Refined the glue application technique to eliminate leakage points |
Improved waterproof performance | Upgraded the sealing process beyond standard IP68 requirements |
Strengthened housing integrity | Optimized the combination of gray/black bases with clear/frosted caps |
Quality control reinforcement | Added additional inspection checkpoints during production |
Every detail was refined to ensure excellence — from the M12 waterproof connectors to the PC covers and the silicone sealing.

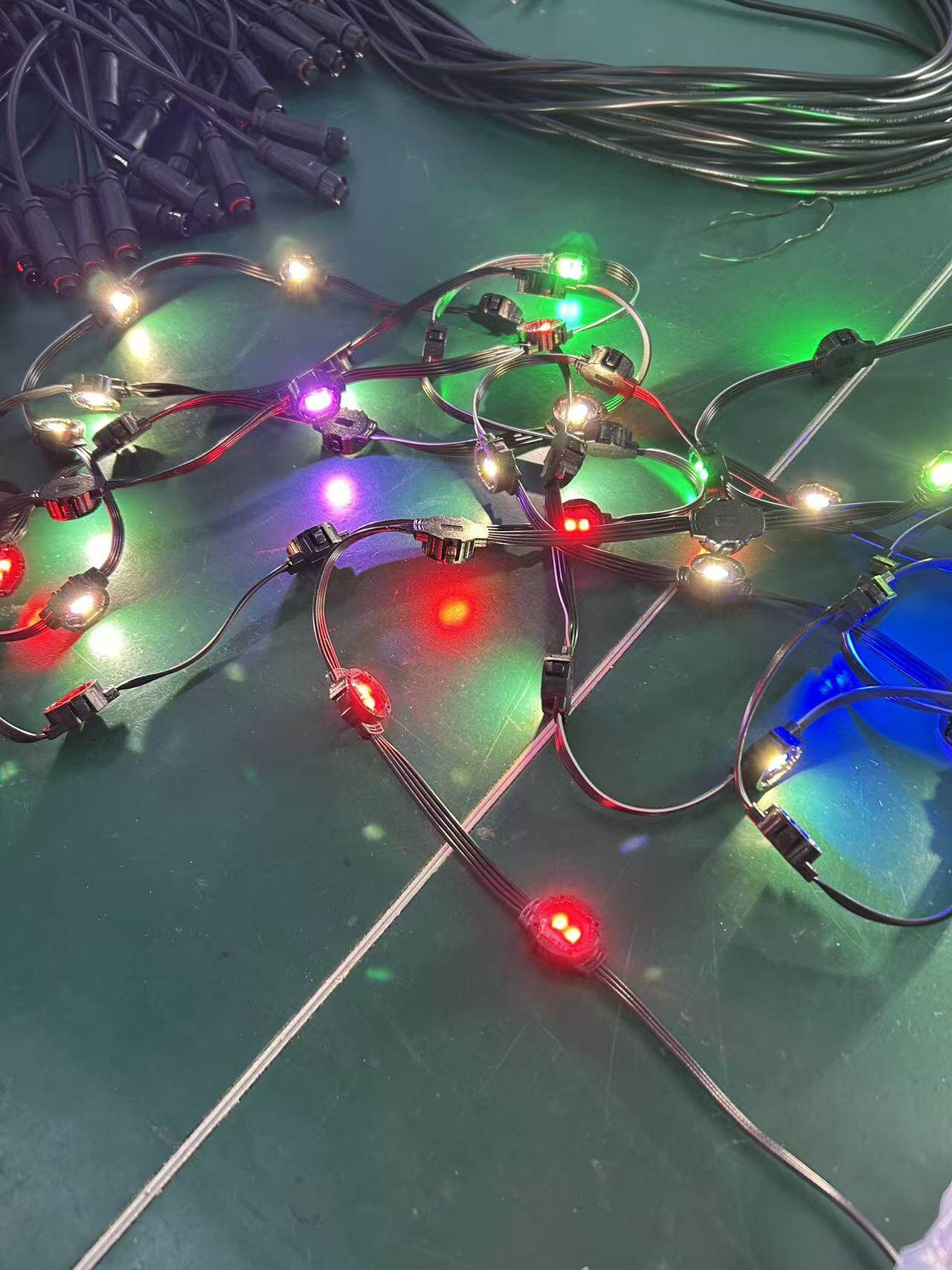

The Product: XXA-D20 20mm RGBW Pixel Point Light
Technical Specifications
Parameter | Value |
|---|---|
Part Number | XXA-D20 |
IC Chip | UCS8904 |
Light Source | SMD3535 RGBW (4000K) |
LED Quantity | 2 pcs per unit |
Voltage | DC12V |
Power | 0.6W per unit |
Beam Angle | 180° |
Cover Options | Clear flat / Frosted (with gray or black base) |
Standard Pitch | 10cm (customizable) |
Standard Chain | 50 units per string |
Waterproof Rating | IP65 / IP67 / IP68 |
Connectors | M12 waterproof male input / female output |
Warranty | 2 years |
Why UCS8904 + 3535 RGBW?
Feature | Benefit |
|---|---|
UCS8904 IC | Individually addressable, 256-level grayscale, single-wire data transmission |
3535 RGBW LED | Pure white (4000K) + vibrant RGB colors — no mixing required |
IP68 waterproof | Suitable for outdoor exposure, rain, and harsh environments |
180° beam angle | Wide, uniform light distribution |
M12 connectors | Reliable waterproof connections for daisy-chaining |
The Result: Ready to Ship
Today, we are proud to announce:
All tests are completed. The order is ready to ship!
Every unit has passed:
24-hour aging test — ensuring long-term reliability
Waterproof integrity test — verifying IP68 performance
Color consistency test — confirming accurate RGBW mixing
Signal transmission test — ensuring stable cascade communication
Applications for 20mm Pixel Point Lights
Benjamin‘s project is just one example. The XXA-D20 is suitable for a wide range of applications:
Application | Why It Fits |
|---|---|
Dynamic facades | Pixel-mapped animations, brand displays, synchronized event lighting |
Contour highlighting | Crisp white (4000K) or colorful edge accents |
Media walls | High-density video displays with flicker-free performance |
Landmarks & art installations | Smooth 16-bit gradients, avoiding low-brightness color shifts |
Smart urban lighting | Programmable schedules for energy savings |
Customization Options
We offer extensive customization for the XXA-D20:
Option | Choices |
|---|---|
Base color | Gray or black |
Cover type | Clear or frosted |
Pitch (spacing) | Customizable |
Chain length | Customizable |
Connector type | M12 T-cable, 2-pin T-connector, 3-pin end cap, etc. |
Wire length | Customizable |
A Heartfelt Thank You
A huge thank you to Benjamin for your trust and partnership. We are honored to deliver not just products, but solutions that exceed expectations.
“Your success is our mission. Let’s achieve more together!”
