Shenzhen, China – September 2026

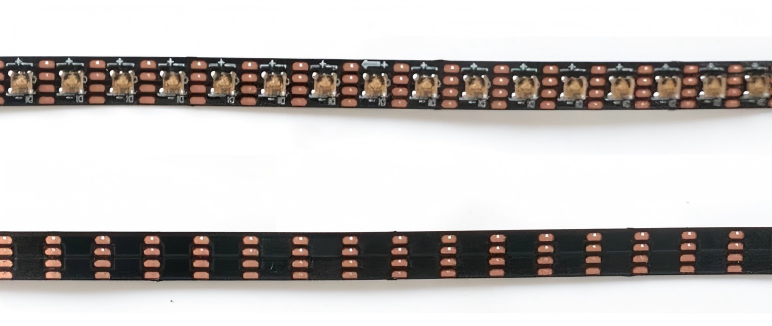

ElisaCustom is pleased to announce the release of our best‑selling ultra‑high density addressable RGB LED strip (Model: XXA-200D2020RGB-APA102C-5V) , featuring 200 LEDs per meter, individual pixel control, and the high‑performance APA102C (DotStar) chipset.
Designed for intricate lighting effects, dense pixel displays, and creative installations, this strip delivers professional‑grade performance in an ultra‑slim 5mm form factor.
What Makes This Strip Unique?
Feature | Specification |
|---|---|
Product Name | DC5V 200LEDs/m APA102C 2020 RGB Digital LED Strip |
Part Number | XXA-200D2020RGB-APA102C-5V |
LED Chip | APA102C / SK9822 (DotStar protocol) |
LED Type | SMD 2020 RGB |
LED Density | 200 LEDs per meter |
Pixel Density | 200 pixels per meter (1:1) |
Voltage | DC5V |
Power | 20W per meter |
PCB Width | 5mm (ultra‑slim) |
PCB Color | White or black |
Copper Thickness | 2 Oz (3 Oz optional) |
Waterproof Rating | IP20 (non‑waterproof) / IP65 (silicone tube) |
Length | 1 meter per roll (customizable) |
Key Features
1. Ultra‑High Density – 200 LEDs per Meter
With 200 LEDs per meter and 200 pixels per meter (1:1 mapping), this strip delivers:
Benefit | Application |
|---|---|
Incredible resolution | Detailed patterns, text, and animations |
Dense light output | Smooth, seamless visual effects |
High pixel density | Ideal for small‑radius bends and tight spaces |
Each LED is individually addressable, giving you complete control over every pixel.
2. APA102C (DotStar) Chipset – Advanced Control
The APA102C uses a clocked (dual‑wire) protocol (data + clock), offering significant advantages over single‑wire chips:
Feature | APA102C Advantage |
|---|---|
High refresh rate | No flicker, even in video recordings |
Fast data speed | Supports longer cascades without lag |
Global brightness control | 5‑bit brightness adjustment (32 levels) |
Reliable timing | Not sensitive to precise timing delays |
SPI compatibility | Easy integration with microcontrollers (Arduino, Raspberry Pi, etc.) |
Note: This strip is also compatible with SK9822 chips, which use the same protocol.
3. Ultra‑Slim 5mm PCB Width
The 5mm wide PCB allows for discreet installation in tight spaces:
Application | Benefit |
|---|---|
Narrow channels | Fits where 10mm or 12mm strips cannot |
Minimalist designs | Almost invisible when installed |
Flexible mounting | Easily bends around corners |
4. Flexible PCB Options – Color & Copper Thickness
Option | Choices | Benefit |
|---|---|---|
PCB color | White or black | Match installation background |
Copper thickness | 2 Oz (standard), 3 Oz (optional) | 3 Oz offers better heat dissipation and reduced voltage drop |
5. Easy Installation – Cuttable at Every LED
The strip can be cut at every copper tab (each tab corresponds to one LED/pixel), allowing:
Precise length customization
Easy reconnection with compatible connectors
Flexible project scaling
Mounting: Equipped with 3M double‑sided adhesive tape on the back for secure attachment to various surfaces.
6. Waterproof Options
IP Rating | Description | Suitable For |
|---|---|---|
IP20 | Non‑waterproof | Indoor, dry locations |
IP65 | Silicone tube coating | Outdoor under cover, damp environments |
Specifications
General Parameters
Parameter | Value |
|---|---|
LED chip | APA102C / SK9822 |
LED type | SMD 2020 RGB |
LED quantity | 200 LEDs per meter |
Pixel quantity | 200 pixels per meter |
Input voltage | DC5V |
Power consumption | 20W per meter |
PCB width | 5mm |
PCB copper thickness | 2 Oz (3 Oz optional) |
Cutting length | Every copper tab (1 LED = 1 cut point) |
Adhesive | 3M double‑sided tape |
Standard length | 1 meter per roll |
Waterproof rating | IP20 (IP65 optional) |
APA102C Protocol Features
Feature | Specification |
|---|---|
Communication | Dual‑wire (data + clock) |
Data speed | Up to 20MHz+ |
Grayscale | 8‑bit per channel (256 levels) |
Global brightness | 5‑bit (32 levels) |
Refresh rate | Very high (no flicker on camera) |
Applications
Application | Why This Strip Fits |
|---|---|
Home decor & ambiance | Ultra‑slim, discreet, vibrant colors |
Fitness studios & leisure centers | High density for eye‑catching effects |
Residential lighting projects | Flexible, cuttable to exact lengths |
Hospitality environments | Professional‑grade control, no flicker |
Events & exhibitions | Dynamic animations, fast refresh |
Retail displays & signage | High resolution for detailed graphics |
Why Choose APA102C Over Single‑Wire Chips?
Feature | Single‑Wire (e.g., WS2812B) | APA102C (DotStar) |
|---|---|---|
Timing sensitivity | Very strict | Relaxed (clock drives timing) |
Refresh rate | ~400Hz – 2kHz | Very high (no flicker) |
Data speed | 800 kbps | Up to 20+ MHz |
Global brightness control | No | Yes (5‑bit) |
Ease of use with microcontrollers | Challenging | Easy (SPI interface) |
Cascade length | Limited by refresh rate | Longer due to high speed |
For applications requiring high refresh rates (e.g., video recording), dense pixel counts, or reliable performance without strict timing requirements, APA102C is the superior choice.
Summary
Advantage | Benefit |
|---|---|
200 LEDs/m | Ultra‑high density, detailed effects |
APA102C / SK9822 chipset | Clocked protocol, no flicker, global brightness |
5mm ultra‑slim width | Fits tight spaces, discreet installation |
Cuttable at every LED | Exact length customization |
White or black PCB | Match installation background |
2 Oz or 3 Oz copper | Better heat dissipation, lower voltage drop |
IP20 / IP65 options | Indoor or protected outdoor use |
3M adhesive backing | Easy, secure mounting |
Availability
The best‑selling 200LEDs/m APA102C RGB LED Strip (XXA-200D2020RGB-APA102C-5V) is available for order now. Custom lengths, PCB colors, copper thickness (2 Oz or 3 Oz), and waterproof ratings are available upon request.
👉 Write to me for samples, technical support, or a quote.
