Shenzhen, China – September 2026

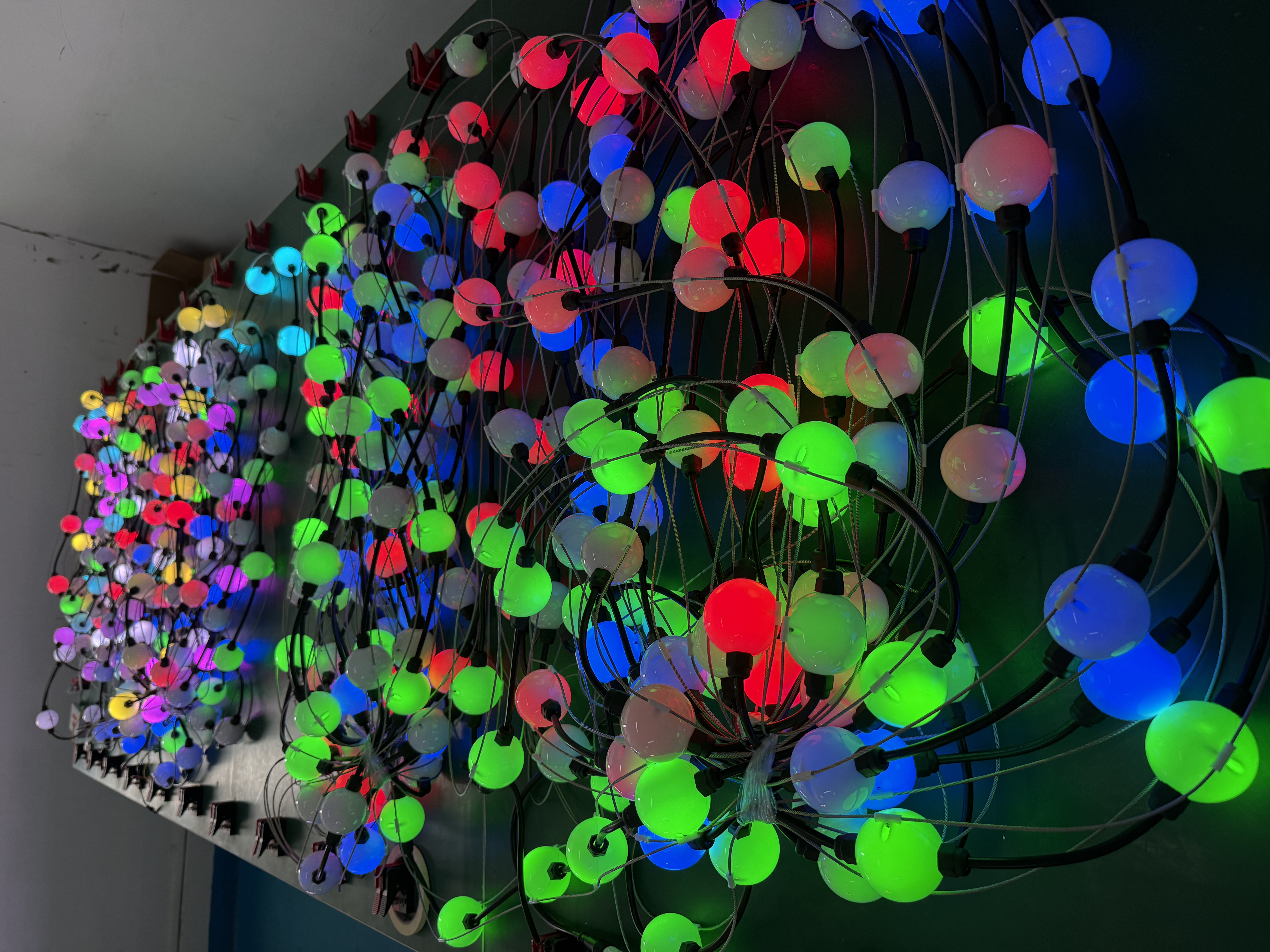

ElisaCustom is pleased to announce our best‑selling 35mm/50mm RGB Pixel LED Ball Chain Light Series — a versatile, weatherproof lighting solution designed for landscape decoration, music festivals, nightclubs, amusement parks, shopping malls, and architectural accent lighting.
Featuring individually addressable pixels, a 360° beam angle, IP67 waterproofing, and DC24V operation, these ball lights deliver vibrant, uniform illumination in a durable, outdoor‑ready package. Available in 35mm and 50mm diameters with 4‑LED or 6‑LED configurations.
What Makes This Pixel Ball Chain Light Unique?
Feature | XXA-354/504 | XXA-356/506 |
|---|---|---|
Bulb Diameter | 35mm / 50mm | 35mm / 50mm |
Light Source | 4 × SMD5050 RGB LEDs | 6 × SMD3535 RGB LEDs |
Power Consumption | 1.2W max per ball | 1.44W max per ball |
Beam Angle | 360° | 360° |
Protocol | SPI (UCS1903/GS8206) / DMX512 | SPI (UCS1903/GS8206) / DMX512 |
Control | Individual pixel control | Individual pixel control |
Operating Voltage | DC24V | DC24V |
Waterproof Rating | IP67 | IP67 |
Standard Quantity | 20 balls/string | 20 balls/string |
Standard Pitch | 20cm (customizable) | 20cm (customizable) |
Housing Options | Milky white / Clear | Milky white / Clear |
Lifetime | 50,000 hours | 50,000 hours |
Key Features
1. Individual Pixel Control – One Pixel per Ball
Each ball contains one individually addressable pixel, controlled by UCS1903, GS8206, or DMX512 IC – allowing independent color and effect control per ball for dynamic, synchronized displays.
2. 360° Full Beam Angle – Uniform Illumination
The diffused spherical design provides:
Uniform illumination from every angle
No dark spots or shadows
Soft, even glow — ideal for decorative and architectural applications
3. Dual Housing Options – Milky White or Clear
Housing | Light Effect |
|---|---|
Milky White | Soft, diffused glow for ambient lighting |
Clear Transparent | Brighter output with visible LEDs |
4. IP67 Waterproof – Outdoor‑Ready
Fully sealed with silicone waterproof protection:
Dust‑tight and temporary immersion protection
Suitable for outdoor use in rain, snow, and harsh weather conditions
5. Reinforced Design – Steel Wire for Durability
Unlike conventional products, our ball chain lights feature steel wire reinforcements on both sides of the string. This design:
Balances the weight of the light string
Strengthens the soldering points – preventing breakage from prolonged suspension
Ensures stable signal transmission – no signal loss caused by wire fatigue or weight stress
This is a critical advantage for permanent or long‑term installations where reliability is essential.
6. Flexible Configuration – Customizable Pitch & Length
Parameter | Standard | Customizable |
|---|---|---|
Balls per string | 20 | ✅ Yes |
Pitch (center‑to‑center) | 20cm | ✅ Yes |
Housing color | Milky white / Clear | ✅ Yes |
Connector type | 3‑pin / 4‑pin waterproof | ✅ 5‑pin XLR, M12 available |
Wire color and length | Standard | ✅ Yes |
7. Robust Connector System
Equipped with waterproof male/female connectors (3‑pin or 4‑pin). Optional 5‑pin XLR or M12 connectors available for professional installations.
Protocol | Pin Configuration |
|---|---|
UCS1903 (3‑pin) | DAT / DC24V+ / GND |
GS8206 (4‑pin) | DAT 1 / DAT 2 / DC24V+ / GND |
DMX512 (4‑pin) | DAT+ / DAT‑ / DC24V+ / GND |
8. Wide Application Compatibility
Compatible with:
SD controllers
DMX controllers
Artnet systems
Other SPI/DMX control platforms
9. High Performance – Long Lifespan
50,000‑hour lifespan – reduced maintenance
Low power consumption – energy‑efficient
Low lumen depreciation – consistent brightness over time
Technical Specifications
Parameter | Specification | |
|---|---|---|
Part No. | XXA-354/504 | XXA-356/506 |
Bulb Diameter | 35mm / 50mm | 35mm / 50mm |
Light Source | 4 × SMD5050 RGB | 6 × SMD3535 RGB |
Power Consumption | 1.2W max per ball | 1.44W max per ball |
Beam Angle | 360° | 360° |
Protocol | SPI / DMX512 | SPI / DMX512 |
Control | Individual pixel | Individual pixel |
Operating Voltage | DC24V | DC24V |
Waterproof Rating | IP67 | IP67 |
Lifetime | 50,000 hours | 50,000 hours |
Standard Quantity | 20 balls/string | 20 balls/string |
Standard Pitch | 20cm | 20cm |
Housing Options | Milky white / Clear | Milky white / Clear |
Working Temperature | -20°C ~ +50°C | -20°C ~ +50°C |
Storage Temperature | -20°C ~ +70°C | -30°C ~ +70°C |
Applications
Application | Why This Product Fits |
|---|---|
Landscape lighting decoration | 360° glow, IP67 waterproof |
Music festivals and concerts | Dynamic pixel effects, daisy‑chain capable |
Night bars, clubs, and KTV | Vibrant colors, individual control |
Shopping malls and retail displays | Eye‑catching, customizable pitch |
Amusement parks and theme parks | Durable, weatherproof, long lifespan |
Street decorations and window displays | Easy installation, low maintenance |
Wedding and event decor | Elegant, programmable effects |
Architectural accent lighting | Clean, uniform illumination |
Installation Overview
Step | Action |
|---|---|
1 | Plan the layout — determine the number of balls and spacing |
2 | Connect waterproof connectors (male to female) between strings |
3 | Use the steel wire reinforcements to balance the weight and secure the string |
4 | Connect to a compatible controller and DC24V power supply |
5 | Power on and test dynamic effects |
Installation note: The steel wire reinforcements on both sides of the string help distribute weight evenly, preventing stress on the soldered joints and ensuring reliable long‑term performance.
Summary
Advantage | Benefit |
|---|---|
4 or 6 RGB LEDs per ball | Flexible brightness options |
Individual pixel control | Independent color and effect per ball |
360° beam angle | Uniform, even illumination |
IP67 waterproof | Outdoor‑ready for rain and harsh weather |
Steel wire reinforcements | Prevents breakage, ensures stable signal transmission |
20‑ball strings, 20cm pitch | Ready for installation (customizable) |
Milky white or clear housing | Choose your preferred light effect |
DC24V operation | Safe, efficient, standard voltage |
50,000‑hour lifespan | Long‑term reliability |
Wide controller compatibility | SD, DMX, Artnet |
Availability
The best‑selling 35mm/50mm RGB Pixel LED Ball Chain Light Series is available for order now. Custom pitch, string length, housing color, connector types, and wire colors are available upon request.
