Published: October 2026 | Category: Client Stories
The Story at a Glance
Client: Claudia (Canada)
Project: Clothing store lighting installation
Product: Warm White LED Rigid Bars (XXA-BAR-48D5050) + Custom Connectors + Power Supplies
Key Specs: SMD5050, 48 LEDs/m, DC24V, 12W/m, IP65, 3000K warm white
Quantity: 1,400 rigid bars (various lengths) + 120 power supplies + 80 custom connector sets
Outcome: A safe, simple, and well-matched lighting solution for a retail environment
How It Started
When Claudia reached out from Canada, she had a clear project in mind: she wanted to install single-color LED rigid bars in a clothing store.
The store served mostly women and children — which meant the installation had to prioritize two things above all else:
Safety — no exposed wiring, low voltage, no risk of shock
Simplicity — an installation method that did not require complex on-site work
This was not a project where elaborate effects or color-changing capabilities mattered. It was about clean, warm, reliable lighting that would make the store feel inviting — and do so safely.
The Challenge
Claudia's requirements were specific but practical:
Requirement | Why It Mattered |
|---|---|
Single color (warm white) | Consistent, inviting retail atmosphere |
Safe installation | Store serves women and children — safety is critical |
Simple mounting | Minimal disruption and no complex wiring |
Rigid bar format | Clean, straight light lines without sagging |
Custom connector lengths | To match the store layout precisely |
She needed a solution that could be installed efficiently, operated safely at low voltage, and looked professional in a retail environment.
Our Solution: A Complete, Matched Package
We provided a complete solution built around our Warm White LED Rigid Bars (XXA-BAR-48D5050) , supported by custom connectors and matched power supplies.
Core Product: LED Rigid Bars
Parameter | Specification |
|---|---|
Model | XXA-BAR-48D5050 |
LED Type | SMD5050 |
LED Density | 48 LEDs/m |
Voltage | DC24V |
Power | 12W/m |
IP Rating | IP65 |
Color | Warm White |
Dimensions | 30 × 32 × 1000mm |
Connector | Without female connector |
Available Lengths
Claudia's project required multiple bar lengths to fit different sections of the store:
Length | Quantity | Best For |
|---|---|---|
3 feet (0.9m) | 360 pcs | Short runs, display areas |
4 feet (1.2m) | 320 pcs | Standard shelf runs |
5 feet (1.5m) | 400 pcs | Main lighting runs |
6 feet (1.8m) | 320 pcs | Longer continuous sections |

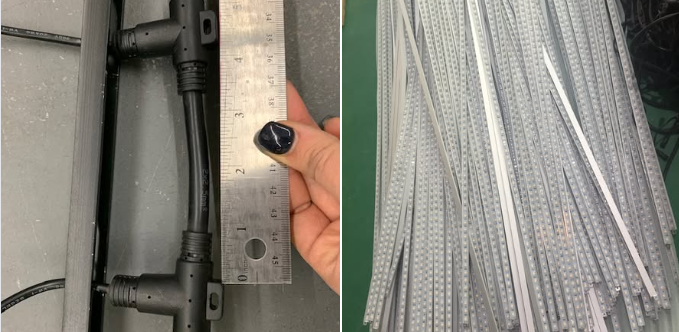

Custom Connectors
To match Claudia's layout precisely, we supplied customized connector sets for both 30-light and 5-light configurations:
Connector Set | Specification | Quantity |
|---|---|---|
30-light connectors | 10ft (3m) cables, 30 female connectors, 4" (10cm) spacing | 40 pcs |
5-light connectors | 2ft (0.6m) cables, 5 female connectors, 4.8" (12cm) spacing | 40 pcs |
Both sets included:
Extra 10ft length for power supplies
Extra hard metal wires
5ft Canadian plug (1.5m) — UL certified
Power Supplies
Model | Power | Voltage | Dimensions | Quantity |
|---|---|---|---|---|
SE-600-24V | 600W | DC24V | 247×127×63.5mm | 40 pcs |
LRS-150-24V | 150W | DC24V | 159×97×30mm | 40 pcs |
Why This Solution Worked for Claudia
Factor | How It Was Addressed |
|---|---|
Safety | Low-voltage DC24V system; UL-certified Canadian plug |
Simple installation | Pre-wired connectors and rigid bar format |
Warm white color | 3000K for a soft, inviting retail atmosphere |
IP65 protection | Dust-tight and protected against water jets |
Custom lengths | Four bar lengths to match store layout |
Complete package | Bars, connectors, and power supplies supplied together |
The Outcome: A Smooth Installation
The combination of rigid bars, custom connectors, and matched power supplies meant Claudia's team could install the lighting efficiently — without complex on-site wiring or safety concerns.
The warm white light created a comfortable, welcoming environment suited to a clothing store serving women and children.
A complete solution, matched to the project.
Why This Project Matters
This case demonstrates how we support projects that prioritize safety, simplicity, and reliability:
Safety-first design — low voltage, UL-certified plugs
Practical customization — connectors matched to specific spacing and length requirements
Complete system supply — bars, connectors, and power supplies from one source
Retail-appropriate lighting — warm white, IP65, rigid bar format
