Published: September 2026 | Category: Client Stories
The Story at a Glance
Client: William
Project: Custom pixel lighting installation
Starting Point: William provided a project sketch
What We Delivered: Detailed wiring diagram, optimized pixel string configuration, controller and power supply integration plan, complete kit
Special Thank-You: Two free light strings
Outcome: A fully coordinated, project-ready pixel lighting system

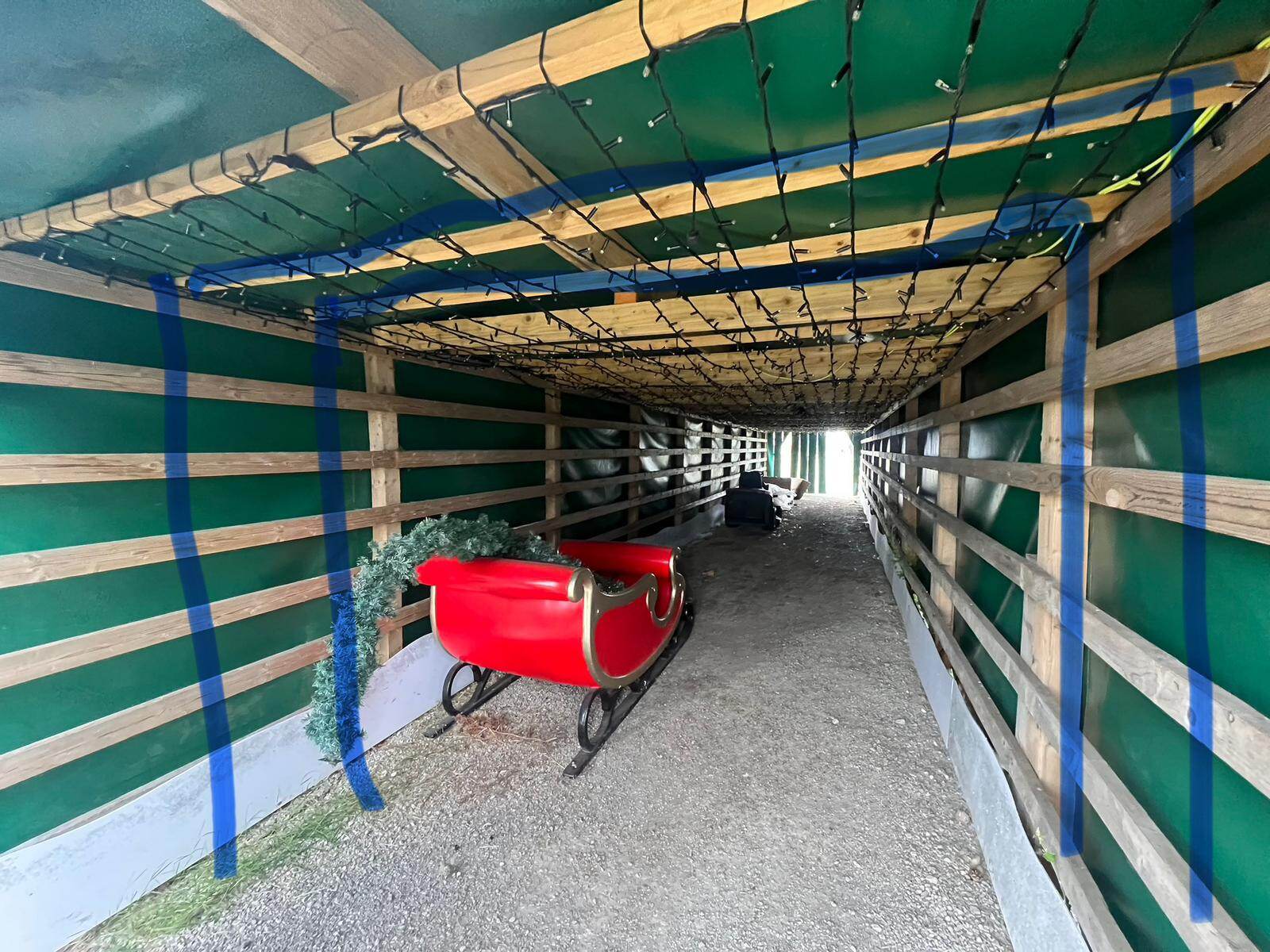

Full YouTube project video: Transforming a Tunnel with Reliable DC12V GS8208 12MM Pixel String Lights
How It Started: From a Simple Sketch
When William first approached us, he didn't have a full technical specification — he had a project sketch.
That's often how real projects begin. A concept, a rough layout, an idea of what the lighting should do. But between a sketch and a working installation, there's a lot of technical ground to cover.
We took William's sketch and turned it into a complete, buildable system.
What We Provided: Beyond Just Products
This wasn't a "pick products from a catalog" order. We worked with William to develop the full technical solution.
1. Detailed Wiring Diagram
We created a custom wiring diagram based on William's sketch, showing:
How the pixel strings connect to each other
Where power injection points should be placed
How data flows from the controller to each string
Connector types and cable routing
2. Optimized Pixel String Configuration
We recommended the reasonable number of pixels per string — not just what's possible, but what works reliably.
Consideration | Our Recommendation |
|---|---|
Pixels per string | 140 pcs per string, 7m per chain |
Spacing | 5cm between each LED |
Power injection | At the middle of the string (between pixel 70 and 71) |
Total load | Matched to the MEAN WELL power supply capacity |
This ensures consistent brightness across the entire installation — no dimming at the far end, no overloaded power supplies.
3. Controller & Power Supply Integration
We specified how to better control the system using:
Component | Role |
|---|---|
K-8000C SD Controller | 8000 pixels, standalone control with built-in effects |
MEAN WELL HLG-240H-12A | 240W, DC12V, waterproof power supply |
M12 connectors & cables | Reliable data and power distribution |
We didn't just supply these components — we showed William how they work together.
The Complete Kit
Product | Model | Key Specifications |
|---|---|---|
12mm LED Pixel String | XXA-12ICRGB-12V | IP67, DC12V, 0.3W, GS8208, 140pcs/string, 7m per chain, 5cm spacing, 4-pin waterproof M/F, all black wire |
3-Way LED Data Connector | XXA-T-DATA-M12 | 4-pin M12 Male & Female & Female |
3-Way LED Power Injection Connector | XXA-T-POWER-M12 | 4-pin M12 Male & Female, 2 bare wires for power |
4-Pin M12 Connector Cable | XXA-4PIN-M/F-M12 | Male & Female, 15cm length |
M12 Extension Cable | XXA-E-F/F-E12 | 4-pin Female & Female, 30cm length |
Waterproof Power Supply | HLG-240H-12A | MEAN WELL, DC12V, 240W, 244.2 × 68 × 38.8mm |
SD Controller | K-8000C | 8000 pixels, 3W, AC110-220V / DC12V-24V |
The Thank-You: Two Free Light Strings
As a special thank-you to William for his incredible trust, we sent two free light strings alongside his order:
Free Gift | Description |
|---|---|
1× Solid-Color Rubber Bubble String | A flexible, decorative string for accent lighting |
1× Flashing 9+1 Effect String | A dynamic string with multiple flashing modes |
These weren't part of the order — they were a gesture of appreciation for a client who trusted us with a complete project.
Why This Project Matters
Factor | Why It Matters |
|---|---|
From sketch to system | We turned a concept into a fully engineered solution |
Technical guidance | Wiring diagram, pixel counts, power injection points |
Complete kit approach | All components matched and supplied together |
Reliable components | MEAN WELL power supply + GS8208 pixels + SD controller |
Client appreciation | Free gift strings reflect our commitment to relationships |
Client Feedback
William's project is a reflection of what we aim for with every client: a complete, coordinated solution — and a relationship built on trust.
"Your support drives us to deliver excellence. Let's bring your lighting vision to life — together!"
Have a Pixel Lighting Project?
Whether you have a full specification or just a sketch, we can help you turn it into a working system — with wiring diagrams, component selection, and a complete kit.
