Shenzhen, China – September 2026
When it comes to RGB neon strips, the industry standard is typically 5050 RGB LEDs. But for projects that demand higher density, smoother transitions, and more vibrant effects, the 3838 RGB LED is an excellent upgrade – and it’s Drew’s favorite choice.
Drew recently approached us for a custom neon solution using the 3838 RGB chip. The result? A 12×25 round top neon strip that delivers exceptional brightness and color quality in a compact, durable package.
The Challenge: 5050 vs 3838 – Why Density Matters
Feature | Standard 5050 RGB | Upgrade 3838 RGB |
|---|---|---|
LED Size | 5.0 × 5.0 mm | 3.8 × 3.8 mm |
Typical Density | 30–60 LEDs/m | 60–120 LEDs/m |
Brightness | High | High (comparable) |
Color Mixing | Good | Excellent (smoother transitions) |
Best For | General lighting, standard strips | High-density, seamless effects |
The 3838 RGB LED is smaller than the 5050, allowing for higher density while maintaining excellent brightness and color saturation.

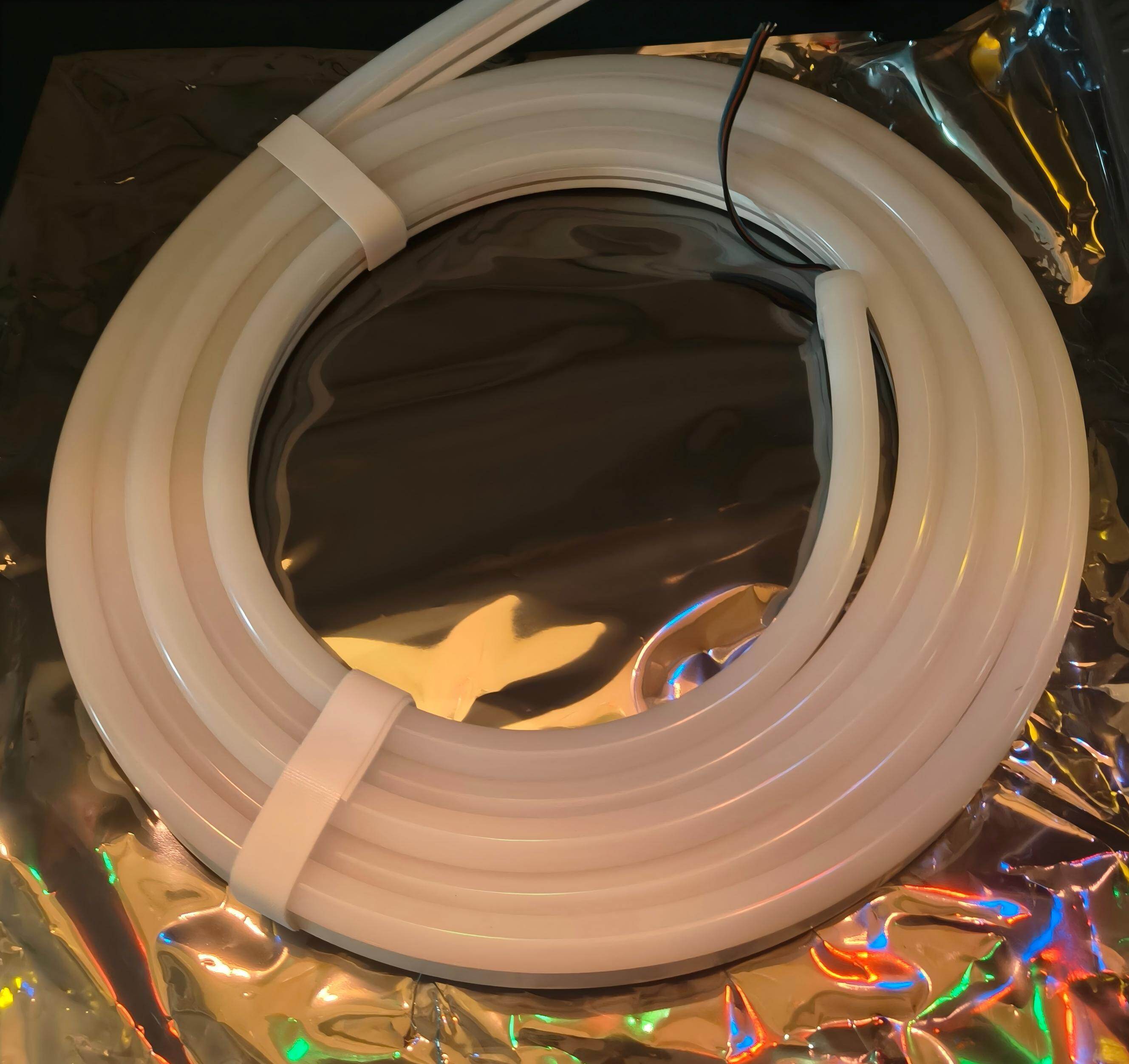

Drew’s Project: A Custom 12×25 Round Top Neon
Drew specified a 12×25 round top neon configuration, which provides a soft, diffused glow ideal for architectural outlining, signage, and creative installations.
Parameter | Specification |
|---|---|
Product Type | Round Top Neon with RGB Tape |
LED Type | SMD3838 RGB |
LED Density | 120 LEDs/m |
Power | 14W/m |
Voltage | DC24V |
PCB Width | 10mm |
Neon Profile | 12×25 round top |
Beam Angle | 120° |
Waterproof | IP67 (typical) |
Length | Customizable |
Warranty | 5 years (LED strip) / 3 years (neon housing) |
Why 3838 RGB? Drew’s Favorite Choice
Drew has consistently chosen 3838 RGB LEDs for his projects, and for good reason:
Advantage | Why It Matters |
|---|---|
Higher density (120 LEDs/m) | Smoother, more seamless light – no visible hotspots |
Better color mixing | Superior blending for vibrant, uniform colors |
Compact size | Fits into tighter neon profiles |
Excellent brightness | Comparable to 5050 despite smaller size |
Flicker‑free performance | Reliable for video and broadcast applications |
“The 3838 is my go‑to for high‑density RGB neon. The color quality and consistency are unmatched.” – Drew, repeat client
Product Specifications
Parameter | Value |
|---|---|
LED Type | SMD3838 RGB |
LED Density | 120 LEDs/m |
Voltage | DC24V |
Power | 14W/m |
PCB Width | 10mm |
Neon Profile | 12×25 round top |
Beam Angle | 120° |
Control | SPI (addressable) or analog |
Waterproof | IP67 (silicone housing) |
Length | Customizable (5m standard) |
Key Features
1. High‑Density 120 LEDs/m – Seamless, Smooth Light
With 120 LEDs per meter, this neon strip delivers:
Continuous, seamless illumination – no visible dark spots or gaps
Smooth colour transitions – ideal for dynamic RGB effects
High brightness – visible even in daylight conditions
2. SMD3838 RGB – Compact, Powerful, Versatile
The 3838 RGB LED offers:
Excellent color mixing – vibrant, saturated colors
Compact footprint – fits into slim neon profiles
High reliability – proven performance in demanding applications

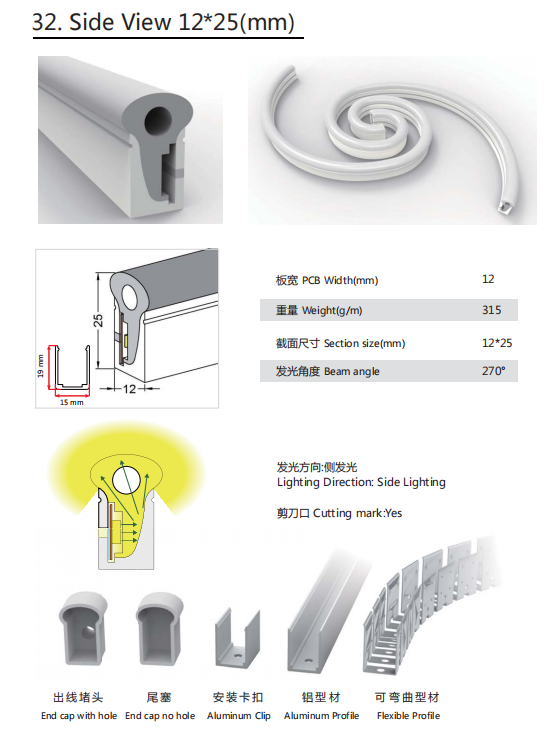

3. 12×25 Round Top Neon Profile – Professional Finish
The round top neon housing provides:
Soft, diffused light – eliminates harsh LED dots
Professional appearance – ideal for exposed installations
Durable silicone material – UV‑resistant and anti‑yellowing
4. DC24V Operation – Long Runs, Consistent Brightness
Operating at DC24V offers:
Reduced voltage drop – consistent brightness over longer distances
Efficient power consumption – 14W/m
Compatibility with standard 24V power supplies
5. IP67 Waterproof – Indoor & Outdoor Ready
The IP67 rating ensures:
Full dust protection
Temporary immersion protection
Suitable for outdoor facades, wet locations, and exposed installations
6. Customizable Length – Tailored to Your Project
Available in standard 5m rolls or custom lengths, with options for:
Custom connector types
Custom wire lengths
Custom neon colors
Applications
Application | Why This Neon Fits |
|---|---|
Architectural outlining | 12×25 round top, IP67, seamless light |
Signage and channel letters | High density, vibrant colors, diffused glow |
Display cases & retail shelving | Compact neon profile, uniform illumination |
Outdoor facades | IP67, UV‑resistant silicone |
Cove & accent lighting | Flexible, easy installation |
Stage & event lighting | RGB control, smooth effects |
Hospitality & residential | Warm or vibrant color options |
Summary
Advantage | Benefit |
|---|---|
120 LEDs/m | High density, seamless light |
3838 RGB LED | Superior color mixing, compact size |
12×25 round top neon | Professional, diffused glow |
DC24V operation | Long runs, consistent brightness |
IP67 waterproof | Indoor and outdoor use |
14W/m | Energy‑efficient |
Drew’s choice | Trusted by a repeat client |
Looking for High‑Density RGB Neon?
Drew’s project is a perfect example of how we work with clients to deliver exactly what they need – even when it falls outside standard specifications.
Whether you need 3838 RGB, 5050 RGB, or other custom configurations, we can help.
