Custom 8mm Horizontal & Vertical Bend Neon Strip – 84 LEDs/m, 3535 RGBW

Published: October 2026 | Category: Custom Strip | Application: Custom LED Strip

Quick Answer

This custom 16×16mm neon strip is engineered for both horizontal and vertical bending, using an 8mm-wide PCB with 84 × SMD3535 RGBW (4000K) LEDs per meter. Operating at DC24V and 25.2W/m, it delivers high-density, flexible illumination with a 5-meter reel and 5 bare wires for input. The specification was developed for a UK client based on a long-term partnership and verified through sample testing — choosing 3535 RGBW LEDs over standard options to match the 8mm PCB width and achieve the required brightness.

The Story Behind the Spec

For clients who work with high-density LED strips, "standard" isn't always enough.

When Nathan from the UK approached us for a custom neon project, we already had years of experience working with his company. We understood their specific requirements for high-density lighting — and we knew that a standard 60 LEDs/m strip would not meet their expectations.

So we recommended 84 LEDs/m instead.

For this particular 16×16 neon profile, the internal strip needed to fit an 8mm PCB width. After testing physical samples, we confirmed that SMD3535 RGBW was the right LED to use — balancing brightness, color quality, and mechanical fit within the 8mm constraint.

This is how custom strip solutions are built: by combining material knowledge, application experience, and real-world testing.

Product Overview: Custom 16×16 Neon Strip

Key Features

1. 8mm PCB Width – Engineered for 16×16 Neon

The 8mm PCB is the critical enabler for this 16×16 neon profile. It allows the strip to fit precisely inside the housing while maintaining the mechanical integrity required for horizontal and vertical bending.

2. 84 LEDs/m – High Density for Demanding Projects

We specified 84 LEDs/m rather than the standard 60 LEDs/m because we knew Nathan's company requires higher-density illumination.

The higher density delivers:

• Smoother, more uniform light

• Better brightness without overdriving the LEDs

• Enhanced visual impact for architectural and display applications

3. SMD3535 RGBW (4000K) – Verified Through Sample Testing

The SMD3535 RGBW LED was selected after physical sample testing. It offers:

• Dedicated 4000K white channel for clean, neutral white light

• Full RGB color mixing for dynamic effects

• Reliable performance within the 8mm PCB constraint

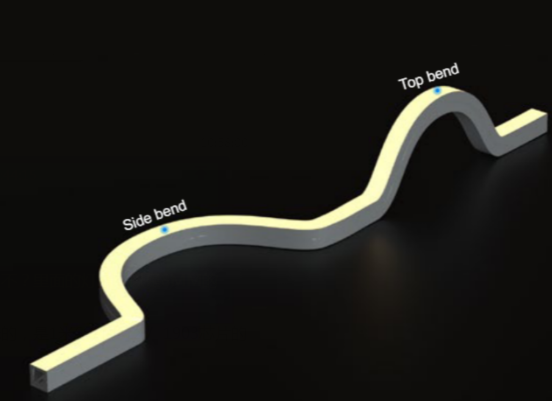

4. Horizontal & Vertical Bending – True 3D Flexibility

The 16×16 profile supports:

• Horizontal bends — for flat curves and corners

• Vertical bends — for changes in height and 3D shaping

This makes it suitable for:

• Architectural outlines

• Curved signage

• 3D displays and installations

• Creative lighting designs

5. DC24V, 25.2W/m – Efficient and Stable

Operating at DC24V with 25.2W/m provides:

• Reduced voltage drop over longer runs

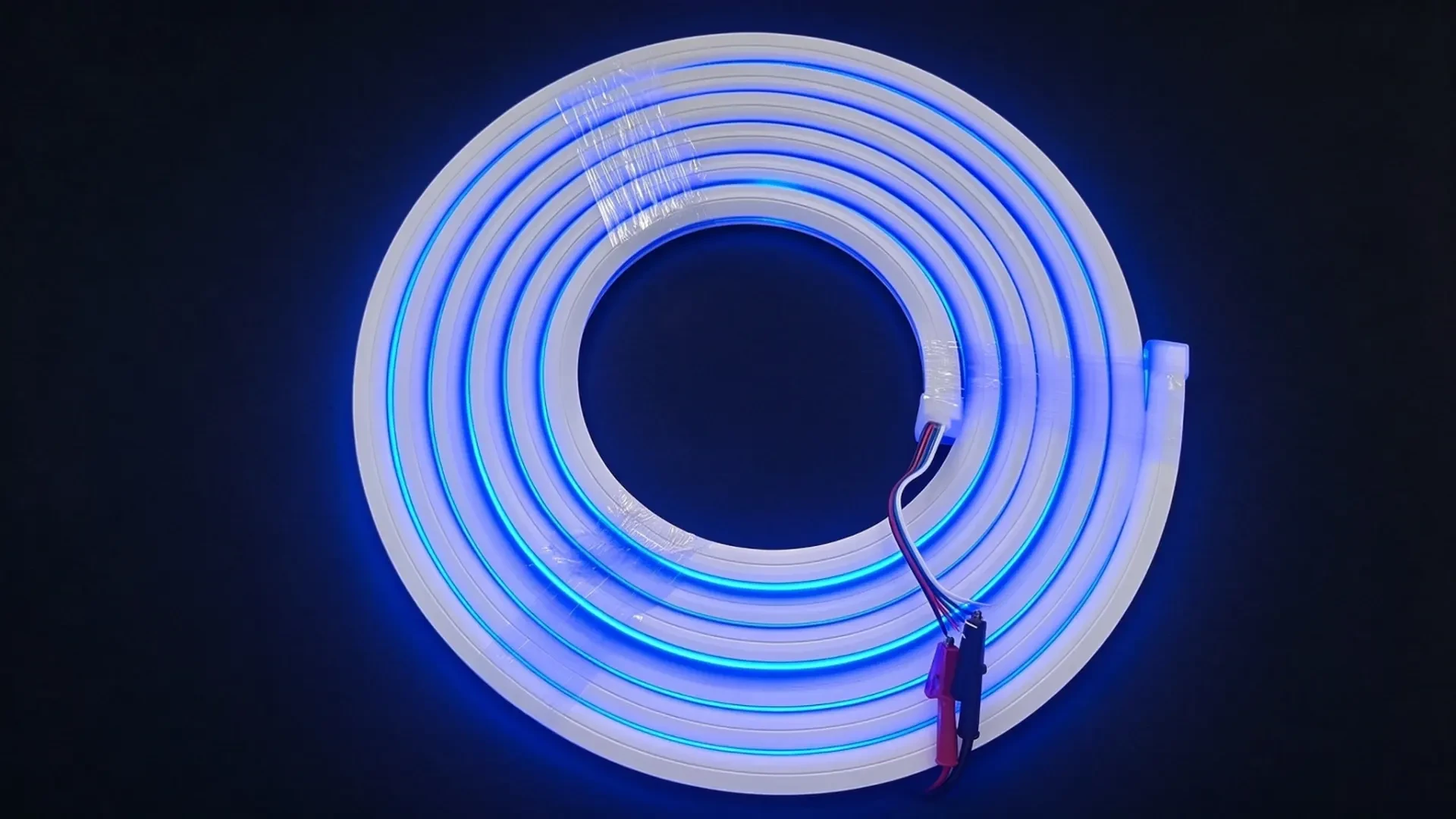

• Consistent brightness across the 5-meter reel

• Compatibility with standard 24V power supplies

6. 5 Bare Wires – Simple Input Connection

The input side features 5 bare wires with clear color coding:

No output wires are included — the strip is designed for single-end power input.

7. 2 Clips per Meter – Secure Mounting

Each meter comes with 2 mounting clips, ensuring the neon strip stays securely in place along its run.

Technical Specifications

Applications

Summary
