At ElisaCustom, every custom project is a chance to refine our craft. This Chain of 9 Pixel Modules is part of Benjamin’s second project with us — a continuation of the trust built through our first collaboration.
This project demonstrates how we take a standard concept and adapt it precisely to a client’s needs.
Benjamin’s other product in this project: Check out the compatible strobe warning light we also developed for him:
👉 Custom Strobe Warning Light (SPI Pixel Light) →
The Challenge: A Compact, Weatherproof Pixel Solution
Benjamin needed a flexible, modular pixel lighting system that could be integrated into a larger installation. The requirements were specific:
A chain of 9 modules with precise spacing
Each module needed high brightness and reliable color control
Outdoor durability was essential
Seamless compatibility with his other custom components
We delivered a solution that met every requirement.
The Solution: Chain of 9 Pixel Modules with UCS1903 Control

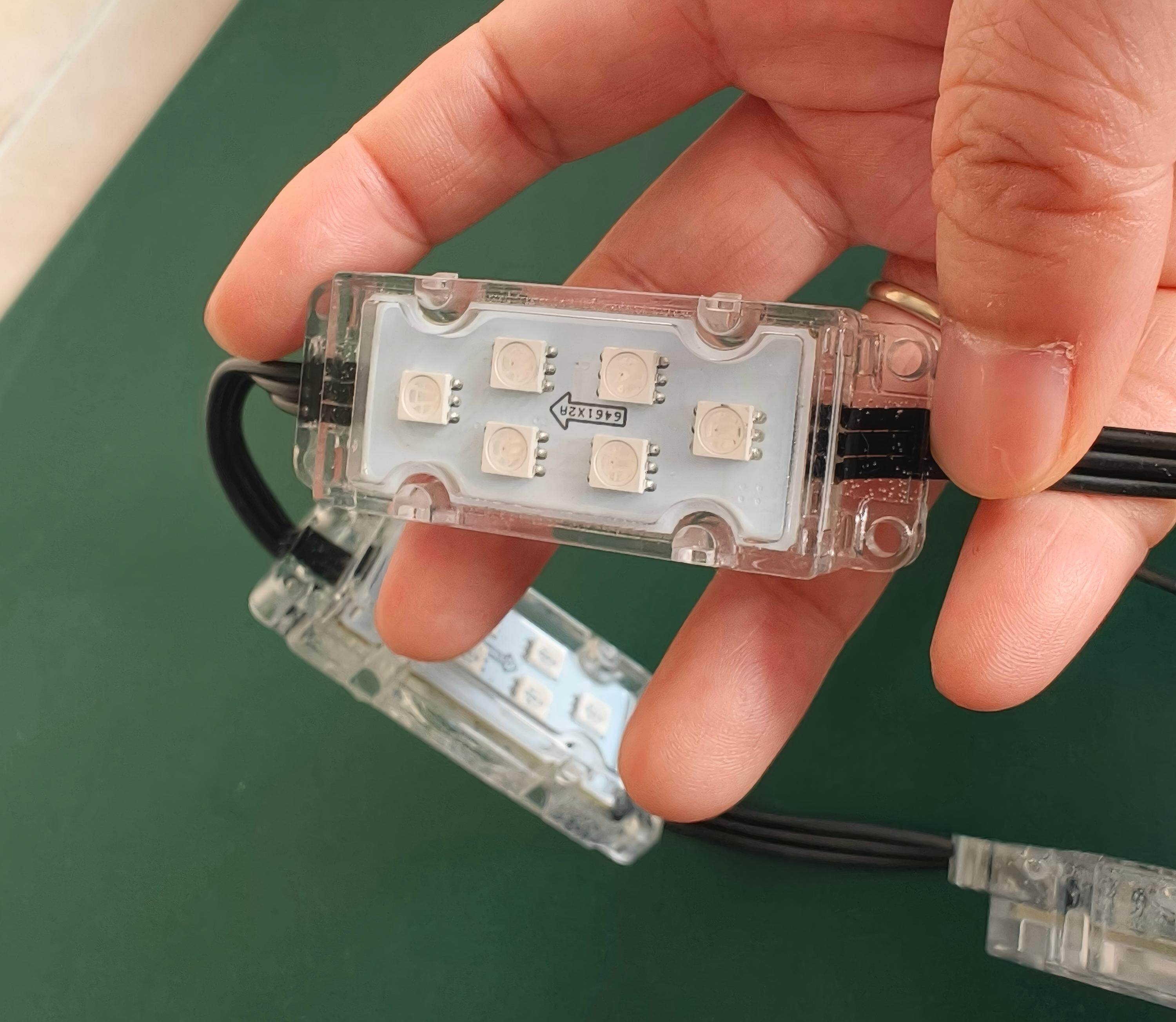

We designed a custom module chain built around the UCS1903 addressable IC, with 6 × SMD5050 RGB LEDs per module. The result is a versatile, high-performance pixel system that balances flexibility with durability.
Feature | Specification |
|---|---|
Product Name | Chain of 9 Pixel Modules |
IC Chip | UCS1903 (addressable, 256 grayscale) |
LED Type | 6 × SMD5050 RGB per pixel |
Voltage | DC24V |
Power | 1.44W per module |
IP Rating | IP68 (fully waterproof) |

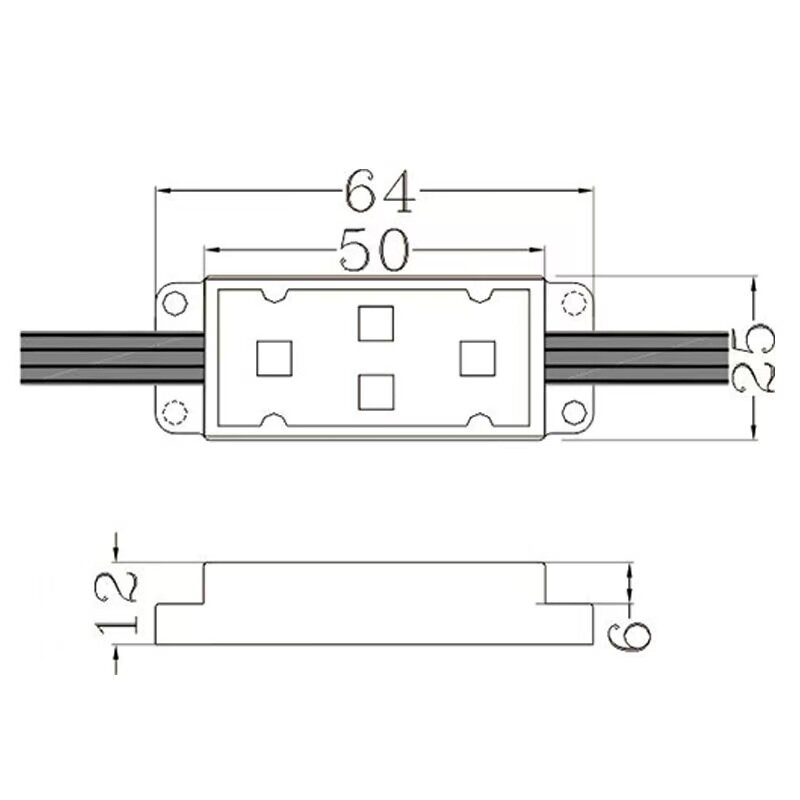

Module Dimensions | 50 × 23mm |
Pitch (Module Spacing) | 5cm between modules |
First Module Lead | 10cm with M8 Male connector |
End Module Lead | 10cm with Female connector |
Total Modules | 9 per chain |
Key Design Features
1. UCS1903 – Individual Pixel Control
The UCS1903 IC provides individual addressability for each module, enabling:
Smooth, 256-level grayscale dimming
Chasing, flowing, and animation effects
Precise color control across the entire chain
2. High-Brightness 6 × 5050 RGB LEDs
Each module features 6 SMD5050 RGB LEDs, delivering:
High brightness for outdoor visibility
Vibrant, saturated colors
Wide beam angle for even light distribution
3. IP68 Waterproof – Built for Outdoor Use
With an IP68 rating, the module chain is:
Fully dust-tight
Protected against prolonged immersion in water
Suitable for harsh outdoor environments, rain, and submersion
4. Optimized Spacing & Connectors – Ready to Install
Feature | Benefit |
|---|---|
5cm pitch between modules | Uniform spacing for consistent visual effects |
10cm lead with M8 Male connector | Easy connection to controller or power source |
10cm lead with Female connector | Simple daisy‑chaining to additional modules |
5. Compact 50 × 23mm Module Size
The small footprint allows for:
Installation in tight spaces
Flexible placement in architectural or display designs
Low visual impact when integrated into structures
6. DC24V Operation – Safe & Efficient
Operating at DC24V offers:
Reduced voltage drop over long runs
Efficient power consumption (1.44W per module)
Enhanced safety for outdoor and wet locations
Why This Project Matters
This chain of pixel modules is one of several custom products we developed for Benjamin’s second project. It demonstrates our ability to:
Flexible Customization: We adapt standard components (UCS1903, 5050 LEDs) to specific form factors and configurations.
Full System Integration: This module chain is designed to work seamlessly with Benjamin’s other custom products, including the strobe warning light — ensuring all components operate together reliably.
Quality & Durability: With IP68 waterproofing and robust construction, this product is built for long-term outdoor performance.
Applications for This Pixel Module Chain
Application | Why It Fits |
|---|---|
Architectural facades | IP68 waterproof, compact size, pixel control |
Landscape lighting | 5cm spacing, high brightness, flexible chain |
Custom signage | Individual pixel control, vibrant colors |
Event and stage lighting | Dynamic effects, easy daisy‑chaining |
Themed installations | Customizable chain length and spacing |
Benjamin’s project | Proven reliability in a multi‑component system |
Installation Overview
Step | Action |
|---|---|
1 | Plan the layout — determine the number of chains and placement |
2 | Connect the M8 Male connector to the controller or power source |
3 | Daisy‑chain additional chains using the Female connector at the end |
4 | Secure modules using appropriate mounting hardware |
5 | Connect to a compatible UCS1903 controller and DC24V power supply |
6 | Power on and test dynamic effects |
Summary
Advantage | Benefit |
|---|---|
UCS1903 pixel control | Individual addressability, 256 grayscale |
6 × SMD5050 RGB LEDs | High brightness, vibrant colors |
IP68 waterproof | Outdoor-ready, submersible |
9 modules per chain | Ready for installation (customizable) |
5cm pitch between modules | Uniform, consistent spacing |
M8 connectors | Easy connection and daisy‑chaining |
DC24V operation | Safe, efficient, long runs |
Compact 50 × 23mm size | Fits tight spaces |
Looking for Custom Pixel Modules?
This project demonstrates our ability to design and manufacture custom pixel solutions — from module count and spacing to connectors and waterproofing.
👉 Write to me for samples, technical support, or a quote.
