Shenzhen, China – September 2026
At ElisaCustom, we believe that customization doesn't always have to be complex. Sometimes, the most effective solutions come from making small, precise adjustments to a proven product.
This was exactly the case when Alvaro approached us with a specific requirement for our XXA-MODULE-3030 High-Voltage LED Modules.

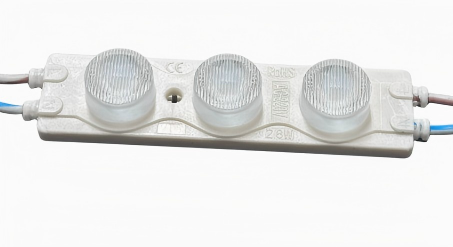

The Product: XXA-MODULE-3030 High-Voltage LED Module
The XXA-MODULE-3030 is a versatile, high-performance LED module designed for illuminated signage, channel letters, and advertising light boxes.

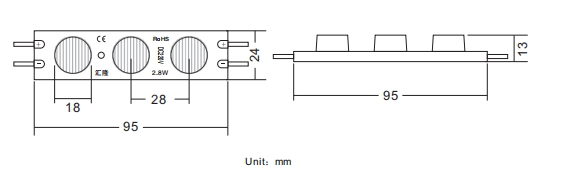

Feature | Specification |
|---|---|
Model | XXA-MODULE-3030 |
LED Type | 3030 high-brightness LEDs (imported) |
LED Quantity | 3 LEDs per module |
Voltage | AC110-220V (direct mains connection) |
Current | 15mA |
Power | 2.8W |
Beam Angle | 10° × 60° (asymmetric) |
Color Temperature | 2200K – 15000K (customizable) |
Luminous Flux | 300 lumens |
IP Rating | IP65 |
Standard Cascade | 20 modules per chain |
Standard Pitch | 10cm |
Key Features
1. High-Voltage Direct Drive – No Power Supply Needed
The XXA-MODULE-3030 operates directly on AC110-220V mains power, eliminating the need for an external power supply. This simplifies installation, reduces component costs, and improves system reliability.
2. Premium 3030 LED Chips
Using imported high-brightness 3030 LEDs, this module delivers:
Low light decay over time
High color rendering index (CRI)
Excellent color consistency across modules
3. Optical Lens for Precise Light Distribution
The module features an integrated optical lens, providing:
Asymmetric beam angle (10° × 60°)
Optimized light distribution for channel letters and signage
Reduced light spill for cleaner illumination
4. Durable Construction – Injection-Molded Housing
The high-quality injection-molded housing offers:
Excellent heat dissipation
Durable, weather-resistant protection (IP65)
Professional appearance
5. Flexible Cascade – 20 Modules per Chain
Standard configuration: 20 modules per chain with 10cm pitch. Individual modules can be cut from the chain for custom lengths.
Alvaro's Customization: A Simple Change with Significant Impact
Alvaro's requirement was straightforward but important: he needed a 5cm pitch between modules, rather than the standard 10cm.
Specification | Standard | Alvaro's Custom Request |
|---|---|---|
Pitch (Module Spacing) | 10cm | 5cm |
Modules per Chain | 20 | 40 |
Why 5cm? Alvaro's project required denser illumination for a specific signage application. By halving the spacing between modules, he achieved:
More uniform light distribution
Higher brightness density
A seamless, professional appearance without visible gaps

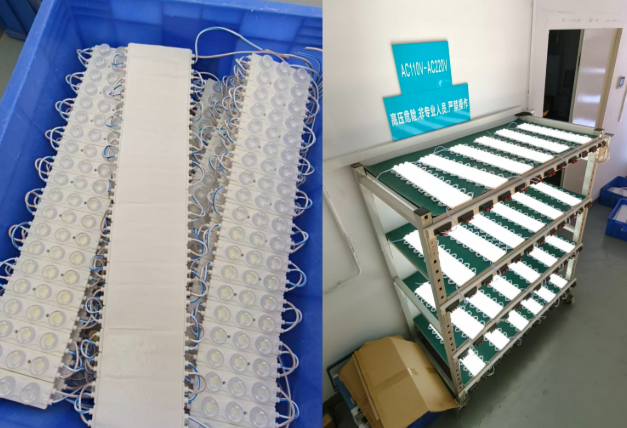

Our Approach: This was a simple customization for our team. We adjusted the cable length between modules to 5cm and increased the cascade count to 40 modules per chain — a straightforward modification that delivered exactly what Alvaro needed.
Why High-Voltage Modules Are Ideal for Signage
Feature | Benefit |
|---|---|
Direct mains operation | No power supply to install or maintain |
High brightness (300 lm/module) | Excellent visibility for signage |
Asymmetric beam (10°×60°) | Even illumination for channel letters |
IP65 waterproof | Suitable for indoor and outdoor use |
Flexible cascade | Customizable pitch and chain length |
Low maintenance | Long lifespan, reliable operation |
Applications
Application | Why XXA-MODULE-3030 Fits |
|---|---|
Airport signage | High brightness, wide voltage range |
Subway and transit signs | Durable, low maintenance |
Channel letters | Asymmetric beam for even letter illumination |
Advertising light boxes | Uniform light distribution |
Commercial signage | IP65 for outdoor use |
Bus station displays | Easy installation, direct mains connection |
Summary
Advantage | Benefit |
|---|---|
AC110-220V direct drive | No power supply required |
3030 high-brightness LEDs | Low decay, high CRI |
Asymmetric beam (10°×60°) | Even illumination for signage |
IP65 waterproof | Indoor and outdoor use |
Customizable pitch | 5cm, 10cm, or custom spacing |
20 modules per chain | Easy installation (customizable) |
Simple customization | Pitch adjustment with no complex redesign |
Looking for Custom LED Modules?
Alvaro's project shows that customization doesn't have to be complicated. Whether you need a simple pitch adjustment, a different color temperature, or a custom chain length, we can help.
