Custom LED strip projects rarely succeed when standard specifications are applied to complex geometries. When Joel approached us for a strip that could integrate into a demanding installation, the requirement was clear: he needed a highly flexible, S-shaped bending profile.
Through an iterative engineering process, we navigated material shortages, PCB width constraints, and strict bending tolerances to deliver a custom SK6812-3535 solution that met the exact specifications. Here is how we engineered the solution.
Engineering Challenge 1: Chip Selection and Material Availability
Joel’s initial specification called for a WS2815 RGBW LED strip. However, the market was experiencing a severe shortage of WS2815 RGBW chips, accompanied by a surge in raw material costs.
To avoid project delays, our engineering team proposed a viable alternative: the SK6812-3535 RGB chip. After reviewing the technical datasheet and performance characteristics, Joel approved the SK6812-3535 platform for the custom build, allowing us to bypass the supply chain bottleneck without compromising output.
Engineering Challenge 2: The 5mm vs. 8mm PCB Width Dilemma
The core mechanical challenge was the physical bending requirement. Joel initially required a 5mm-wide PCB capable of achieving a precise S-shape bend.
Design Parameter | Initial Requirement | Engineering Reality |
|---|---|---|
PCB Width | 5mm | 5mm could not support the 90° bend without stress damage |
LED Density | 60 LEDs/m | 60 LEDs/m requires minimum copper trace clearance |
Bending Angle | 90 degrees | Requires specific cut-outs and flexible substrate design |
After designing the initial PCB layout, our engineers discovered a critical limitation: a 60 LEDs/m density strip on a 5mm width could not physically achieve the required 90-degree bend. The copper traces and components would fracture under the mechanical stress.
We communicated this constraint to Joel immediately. He authorized an increase in width, prioritizing 6-8mm if possible, as long as the 90-degree bendability was maintained.
The Solution: An 8mm Optimized PCB Layout

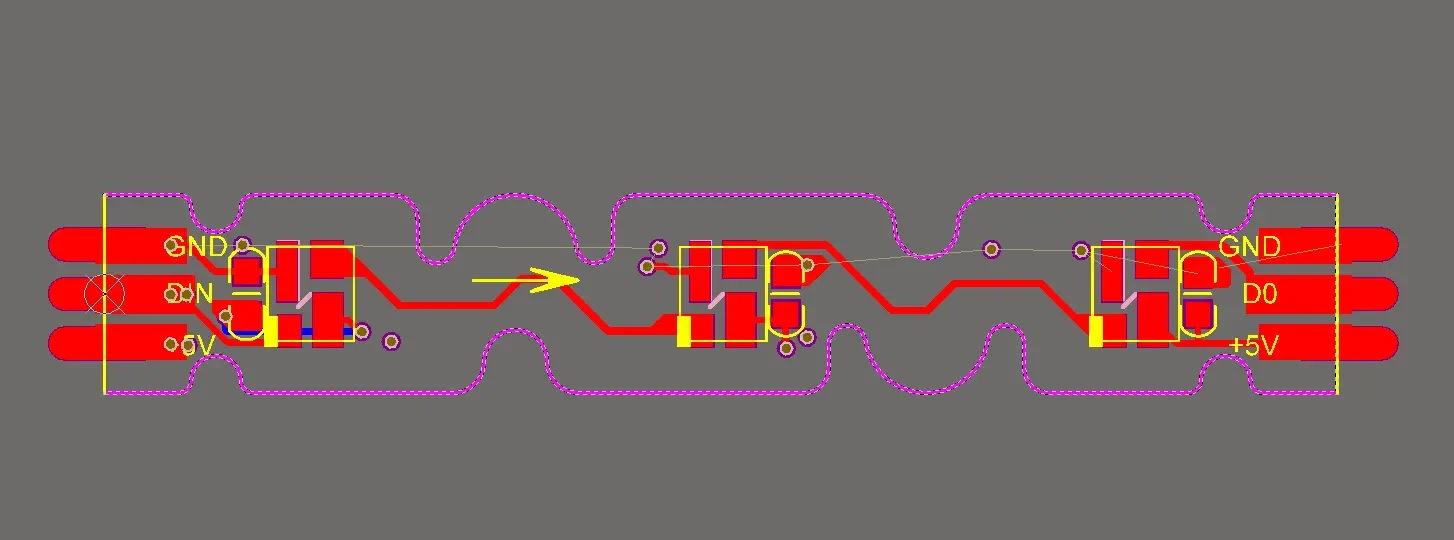

Our engineers redesigned the PCB, focusing on the bend radius and trace routing. After multiple iterations and physical stress testing, we determined that an 8mm width was the optimal configuration.
This width provided:
Sufficient substrate to support the 90-degree physical bend without damaging the circuit.
Reliable electrical routing for the SK6812-3535 chips at 60 LEDs/m.
A slim enough profile to fit Joel's application, keeping the total footprint as compact as possible.
To mitigate the initial tooling costs for this custom PCB design, we co-invested in the setup fee with Joel, allowing him to proceed with a 20-meter small batch for rigorous field testing.
The Result: Verified Quality and Client Approval

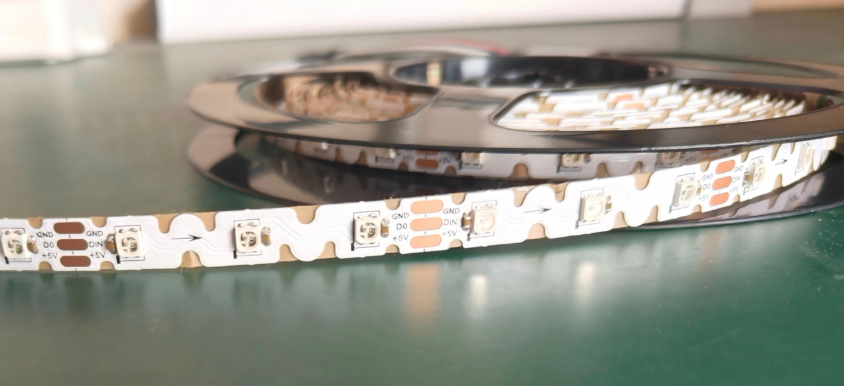

Once production was completed, we did not simply ship the goods. Our quality control team recorded a comprehensive test video and captured detailed macro images of the bending points and soldering joints.
Joel confirmed the samples performed exactly as intended. The custom S-shape design successfully maintained signal integrity across the bends, and the 8mm PCB provided the required mechanical durability.
Custom Strip Engineering Capabilities
This project highlights our core capabilities in the Custom Strip Lighting category:
Component Sourcing Alternatives: Proactively offering alternative IC platforms (like SK6812) when standard chips (WS2815) are unavailable.
Flexible Substrate Design: Engineering custom PCB cut-outs and trace layouts to support complex 2D and 3D bending.
Low MOQ Prototyping: Supporting small-batch testing (like Joel's 20m order) with shared tooling costs.
Strict Quality Verification: Providing photo and video documentation of critical bend points and electrical tests before dispatch.
