The XXA-303RGBW-UCS7604 is a 30mm permanent pixel light engineered for demanding outdoor architectural installations. It features 3 × SMD5054 RGBW LEDs with dedicated warm/cool white channels, driven by the UCS7604 IC with true 16-bit (65,536-level) grayscale. Operating at DC24V, 0.96W per unit, with an IP67 rating and 4-pin M12 waterproof connectors, it delivers unprecedented color depth and reliability for large-scale facades and landscape projects.
Introduction: Why 16-Bit Grayscale Changes Outdoor Lighting
In standard outdoor pixel lighting, 8-bit grayscale (256 levels) is the norm. It works for basic color changes, but when you need smooth, cinematic fades or deep, rich color transitions, 8-bit falls short — you see "stepping" or banding.
The new XXA-303RGBW-UCS7604 solves this with the UCS7604 driver IC. By pushing grayscale to 16-bit (65,536 levels), it delivers true, professional-grade color reproduction outdoors.
But it doesn't stop at color depth. This module is built for the realities of permanent outdoor installations: IP67 waterproofing, M12 connectors, and intelligent dual-channel data redundancy to keep the show running even if a single pixel fails.
1. The Core Technology: UCS7604 Driver IC
The heart of this module is the UCS7604 — an intelligent, 4-channel LED driver designed specifically for high-end outdoor displays.
Feature | Specification |
|---|---|
Grayscale | 16-bit (65,536 levels) — true professional color depth |
Channels | 4 (R, G, B, W) with independent current adjustment |
Refresh Rate | 16kHz port refresh frequency — flicker-free for broadcast |
Data Transmission | 800K/S or 1.6M/S (optional) |
Constant Current | 0–60mA per channel, adjustable via external resistor |
Anti-Interference | Patented S-AI technology |
Fault Tolerance | Dual-channel redundant data transfer (99%+ success rate) |
Why 16-Bit Grayscale Matters
Grayscale | Levels | Visual Result |
|---|---|---|
8-bit | 256 | Visible banding in fades and gradients |
16-bit | 65,536 | Smooth, seamless color transitions |
For architectural facades, landscape lighting, and broadcast-critical installations, 16-bit is the difference between "LEDs" and "professional lighting."
2. Built for the Outdoors: IP67 & M12 Connectors
Permanent outdoor installations demand hardware that survives.
Feature | Specification | Why It Matters |
|---|---|---|
IP Rating | IP67 | Dust-tight, immersion-resistant for 30 min at 1m |
Lens | Clear lens (IP66 rated) | Optical clarity without compromising protection |
Connector | 4-pin M12 waterproof M/F | Secure, industry-standard connections |
Housing | Sealed, outdoor-rated | Withstands rain, snow, and UV exposure |

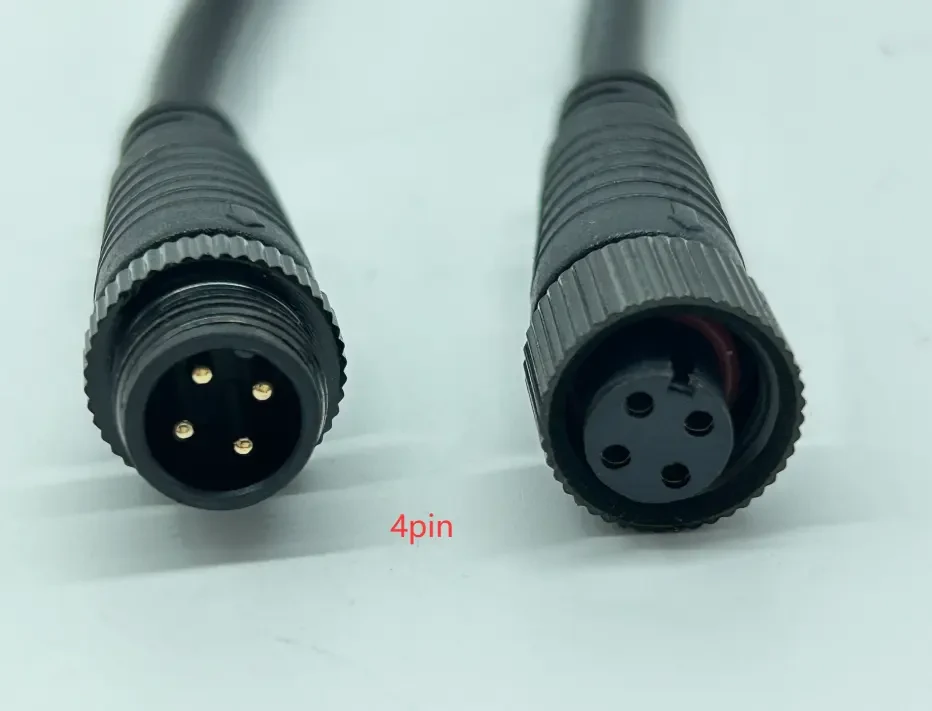

M12 Connectors: The Industry Standard
Unlike standard JST connectors, M12 provides:
Threaded locking mechanism
IP67 protection when mated
Reliable signal and power transmission
Easy daisy-chaining
3. Flexible Configuration: 10cm Spacing, 20pcs/strand
The XXA-303RGBW-UCS7604 is delivered in a standard configuration that suits most outdoor projects:
Parameter | Specification |
|---|---|
Diameter | 30mm |

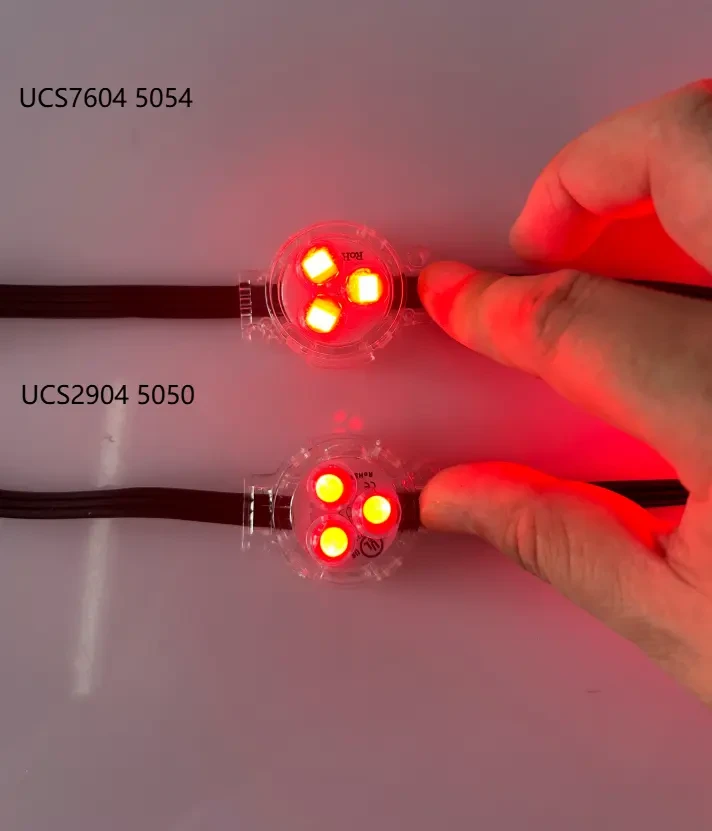

LED Type | 3 × SMD5054 RGBW (warm/cool white) |
Voltage | DC24V |
Power | 0.96W per unit |
Spacing | 10cm (Customizable) |
Quantity per Strand | 20 pcs (Customizable) |
Number of Strands | 5 strands (Customizable) |
Customization: Strand length, spacing, and connector configurations can be adapted to specific project requirements.
4. Applications: Where 16-Bit Grayscale Excels
Application | Why This Module Fits |
|---|---|
Architectural facades | 16-bit grayscale for smooth color gradients |
Bridges and landmarks | IP67, M12 connectors, long run reliability |
Theme parks | Dynamic effects, dual-channel redundancy |
Commercial exteriors | Warm/cool white + RGB for brand lighting |
Landscape installations | 30mm size, clear lens, IP67 protection |
FAQ: 30mm RGBW Permanent Pixel Light
Q1: What is 16-bit grayscale and why does it matter for outdoor lighting?
16-bit grayscale means the LED can display 65,536 levels of brightness per color channel, compared to 256 levels in standard 8-bit systems. For outdoor architectural lighting, this eliminates visible banding and stepping in fades, gradients, and color transitions — especially important for large facades viewed from a distance.
Q2: What does the UCS7604 IC provide?
The UCS7604 is a 4-channel LED driver with 16-bit grayscale, 16kHz refresh rate, and patented dual-channel redundant data transfer. It ensures smooth color transitions, flicker-free performance, and reliability even if a single pixel or data line fails.
Q3: What is the difference between IP67 and IP66 on this module?
The module itself is rated IP67 (dust-tight, immersion-resistant). The clear lens is rated IP66 (dust-tight, powerful water jet-resistant). Combined, the module is suitable for exposed outdoor installations, including areas with rain, snow, and temporary water contact.
Q4: Can I use this module for a large-scale facade project?
Yes. The XXA-303RGBW-UCS7604 is designed for permanent outdoor installations. With M12 waterproof connectors, IP67 rating, and dual-channel data redundancy, it is suitable for large-scale architectural facades, bridges, and landscape projects. Custom spacing and strand lengths are available upon request.
Q5: What is the power consumption of this module?
Each module consumes 0.96W at DC24V. For a strand of 20 modules, total power is approximately 19.2W. The UCS7604 driver allows independent current adjustment per channel via software, giving you precise control over brightness and power consumption.
Summary
Feature | Specification |
|---|---|
Model | XXA-303RGBW-UCS7604 |
LED Type | 3 × SMD5054 RGBW (warm/cool white) |
IC | UCS7604, 16-bit grayscale |
Voltage | DC24V |
Power | 0.96W per unit |
IP Rating | IP67 (module), IP66 (lens) |
Connector | 4-pin M12 waterproof M/F (Customizable) |
Spacing | 10cm (Customizable) |
Configuration | 20 pcs/strand, 5 strands (Customizable) |
