Flexible LED Wall Washer Kit | RGB & Pixel DMX512, IP67

Shenzhen, China – September 2026

Quick Answer

This Flexible LED Wall Washer Kit combines a bendable TPU wall washer (available in RGB or Pixel DMX512 configurations) with high-transmittance PC lenses, multiple beam angles, and IP67 waterproofing. It is designed as a complete solution for curved facades, architectural features, and landscape installations where rigid wall washers cannot fit. Each kit includes the wall washer, mounting accessories, and specification support for controller and power supply matching.

What Makes This Kit a Complete Solution?

Most flexible wall washer projects require sourcing the fixture, mounting hardware, controller, and power supply separately. This kit packages the essential components into a single, project-ready solution:

Component	What It Includes
Flexible Wall Washer	RGB or Pixel DMX512 version, 42 LEDs/m
Mounting Accessories	Clips and brackets for secure installation
Beam Angle Options	20°, 30°, 45°, 60°, or 15°×45° asymmetric
Control Compatibility	RGB (standard) or DMX512 (pixel version)
IP67 Housing	Dust-tight, temporary immersion protection
Specification Support	Controller and power supply matching assistance

Custom lengths, beam angles, and OEM/ODM options are available upon request.

Two Kit Configurations

Feature	RGB Version	Pixel DMX512 Version
LED Type	5050 RGB	5050 RGB
LED Density	42 LEDs/m	42 LEDs/m
Voltage	DC24V	DC24V
Power	24W/m	8W/m
Beam Angles	20°, 45°, 60°	20°, 30°, 45°, 60°, 15°×45°
Pixel Control	No (standard RGB)	Yes (DMX512, 6 pixels/m)
IP Rating	IP67	IP67
Material	TPU (weather-resistant)	TPU (weather-resistant)
Cutting Unit	166.7mm	166.7mm
Dimension	5000 × 20.5 × 12mm	5000 × 18.5mm
Lifespan	50,000 hours	50,000 hours
Certifications	ETL, CE, RoHS, REACH	ETL, CE, RoHS, REACH
Warranty	3 years	3 years

Key Features

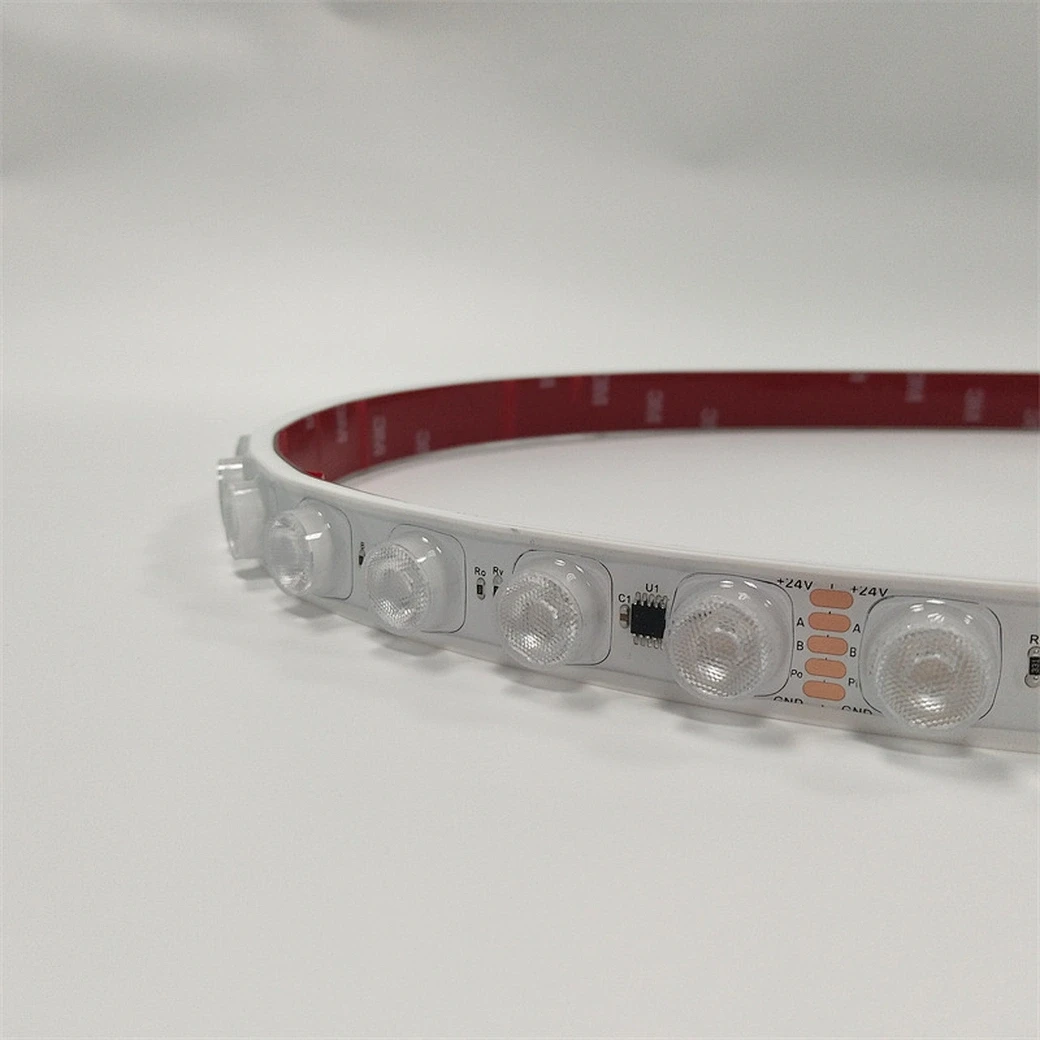

1. Flexible TPU Design – Bend for Curved Installations

Unlike traditional rigid wall washers, this kit uses TPU (Thermoplastic Polyurethane) material, allowing it to bend during installation.

Ideal for:

Curved building facades
Circular or arched architectural features
Irregular landscape elements
Wavy or organic design lines

2. Multiple Beam Angles – Match the Application

The kit includes high-transmittance PC lenses with a range of beam angles:

Beam Angle	Best For
20°	Narrow accent lighting
30°	Medium spotlighting
45°	Wide wash lighting
60°	Extra-wide flood lighting
15°×45° (Pixel version only)	Asymmetric wall grazing

3. RGB & Pixel DMX512 Control Options

Version	Control	Best For
RGB	Standard RGB color changing	General accent and mood lighting
Pixel DMX512	Individual pixel control (6 pixels/m)	Dynamic animations, chasing effects, video mapping

The Pixel DMX512 version supports DMX512 protocol for professional control, enabling:

Complex color sequences
Flowing and chasing effects
Integration with lighting consoles and show control systems

4. IP67 Waterproof – Indoor & Outdoor Use

With an IP67 rating, both versions are:

Fully dust-tight
Protected against temporary immersion in water
Suitable for outdoor installations in rain or wet conditions

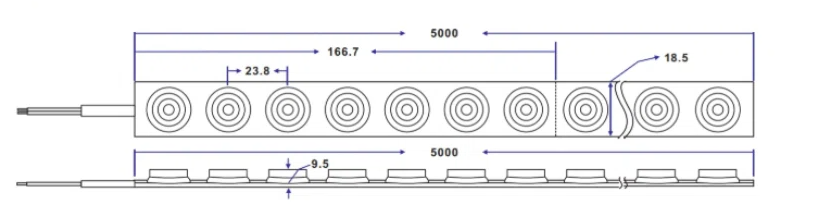

5. Slim Profile – Discreet Installation

Version	Dimensions
RGB	20.5mm × 12mm
Pixel DMX512	18.5mm × 9.5mm

The slim profile allows for discreet installation in tight spaces such as building facades, window frames, staircases, and cove ceilings.

6. Long Run Length – 5 Meters with Uniform Brightness

Both versions support a 5-meter continuous run with uniform brightness and color consistency, reducing the need for multiple power supplies.

7. Certifications and Warranty

Parameter	RGB Version	Pixel DMX512 Version
Certifications	ETL, CE, RoHS, REACH	ETL, CE, RoHS, REACH
Warranty	3 years	3 years
Lifespan	50,000 hours	50,000 hours

Product Specifications

RGB Flexible Wall Washer

Parameter	Value
Item Name	RGB Wall Washer Lighting
LED Type	5050 RGB
LED Quantity	42 LEDs/m
Brightness	1080 lm/W
Voltage	DC24V
Power	24W/m
Beam Angles	20°, 45°, 60°
Housing Color	White
IP Rating	IP67
Cutting Unit	166.7mm
Dimension	5000 × 20.5 × 12mm
Lifetime	50,000 hours
Certifications	ETL, CE, RoHS, REACH
Warranty	3 years

Pixel DMX512 Flexible Wall Washer

Parameter	Value
Item Name	Pixel RGB Wall Washer
LED Type	5050 RGB
LED Quantity	42 LEDs/m
Pixel Density	6 pixels/m
CRI	80 / 90
Voltage	DC24V
Power	8W/m
Beam Angles	20°, 30°, 45°, 60°, 15°×45°
Housing Color	White
IP Rating	IP67
Cutting Unit	166.7mm
Dimension	5000 × 18.5mm
Lifetime	50,000 hours
Certifications	ETL, CE, RoHS, REACH
Warranty	3 years

Applications

Application	Why This Series Fits
Architectural decoration	Flexible for curved facades, slim profile
Landscape lighting	IP67 waterproof, long lifespan
Atmosphere creation	RGB or pixel effects for dynamic environments
Building facades	Grazing angles (15°×45°) for wall washing
Bridges and tunnels	Flexible bending, continuous runs
Stage and events	Pixel DMX512 for dynamic animations
Retail and hospitality	RGB version for accent and mood lighting

Installation Overview

Step	Action
1	Plan the layout — measure and mark the installation path
2	Cut the strip at the designated cutting point (166.7mm)
3	Bend the strip to follow curved surfaces
4	Secure using compatible mounting clips
5	Connect to the appropriate controller and power supply
6	Test and adjust beam angles if needed

Note: For the Pixel DMX512 version, ensure the DMX controller is properly configured for pixel mapping.

Summary

Advantage	Benefit
Complete kit	Wall washer, accessories, and specification support
Flexible TPU material	Bends for curved installations
Multiple beam angles	20°–60° (RGB) / 20°–60° + asymmetric (Pixel)
IP67 waterproof	Indoor and outdoor use
RGB version	42 LEDs/m, 24W/m, 1080 lm/W
Pixel DMX512 version	6 pixels/m, dynamic animations, DMX control
Slim profile	Discreet installation
5-meter continuous run	Uniform brightness, fewer connections
ETL, CE, RoHS, REACH certified	Compliance for international markets
3-year warranty	Long-term reliability

Looking for a Complete Flexible Wall Washer Kit?

This kit is available in RGB and Pixel DMX512 configurations, with custom lengths, beam angles, and OEM/ODM options. We can help you specify the right kit for your curved facade or landscape project.

👉 Write to me for samples, technical support, or a quote.
