Shenzhen, China – September 2026
ElisaCustom is pleased to announce the release of our new LED Flexible Screen (Model: XXA‑SCREEN‑P15) — a lightweight, high‑transparency, and modular display solution designed for commercial advertising, shopping malls, cultural venues, and architectural installations.
Featuring P15 pixel pitch, built‑in Artnet control, plug‑and‑play convenience, and a flexible FPC design that allows bending, folding, and rolling, this screen delivers professional‑grade visual performance with exceptional installation flexibility.
For more product details, please check out the YouTube link: XXA-SCREEN-P15 LED Flexible Screen
What Makes This LED Flexible Screen Unique?
Feature | Specification |
|---|---|
Product Name | LED Flexible Screen |
Model | XXA‑SCREEN‑P15 |
Length | 10m per roll |
Working Voltage | DC24V |
Max Power | 400W |
LED Type | 2020 RGB |
LED Quantity | 16 × 660 LEDs |
Pixel Pitch | P15 (15mm) |
Beam Angle | 120° |
Grayscale | 256 levels |
Working Mode | Artnet / SD |
Operating Temperature | -20°C to +65°C |
Storage Temperature | -20°C to +65°C |
Key Features
1. Plug‑and‑Play Convenience – No Complex Setup
With a built‑in controller, the screen is ready to use immediately upon connection — no complex configuration or additional control hardware required.
2. Flexible Shaping – Bend, Fold, Roll
The screen uses flexible FPC material, offering:
Softness, thinness, and lightness – easy to handle and install
Bending, folding, and rolling capability – adapts to curved surfaces and creative shapes
Free combination – can be shaped to meet diverse design requirements
3. High‑Efficiency Installation & Maintenance
Modular design – quick and easy installation
Front maintenance – repairs can be performed without disassembling the entire screen
Reduced maintenance costs – ensures screen flatness and simplifies servicing
4. High Transparency – Aesthetic Compatibility
The see‑through design:
Does not hinder ventilation or light transmission
Has low wind resistance – suitable for outdoor and high‑rise installations
Maintains building aesthetics – preserves the original appearance and transparency while displaying content
5. Artnet Control – Professional Display Management
The screen is controlled via Artnet protocol, with built‑in 31 effects and SD card support. The DMX channel table provides comprehensive control:
Channel | Function | Description |
|---|---|---|
1 | Mode Selection | 000‑247: Internal 31 effects; 248‑255: Artnet mode |
2 | Speed | 000‑255 (slowest to fastest, SD mode) |
3 | Brightness | 000‑255 (off to brightest, SD mode) |
4 | R‑mask | 000‑255 (subtract red from effect) |
5 | G‑mask | 000‑255 (subtract green from effect) |
6 | B‑mask | 000‑255 (subtract blue from effect) |
7 | Strobe | 000‑007: Normally on; 008‑015: Full white; 016‑255: Strobe (speed adjustable) |
8 | Record | 201‑255: Record Artnet effect to SD card |
6. 256‑Level Grayscale – Smooth, Detailed Visuals
The 256‑level grayscale ensures:
Smooth color transitions – no visible banding
Detailed image reproduction – clear, professional display quality
Vibrant, accurate colors – suitable for video and graphic content
7. Durable & Reliable – Built for Long‑Term Use
50,000‑hour lifespan (typical)
Wide temperature range – operates in -20°C to +65°C
Low‑voltage DC24V operation – safe and energy‑efficient
Technical Specifications
Parameter | Specification |
|---|---|
Product Name | LED Flexible Screen |
Model | XXA‑SCREEN‑P15 |
Length | 10m per roll |
Working Voltage | DC24V |
Max Power | 400W |
LED Type | 2020 RGB |
LED Quantity | 16 × 660 LEDs |
Pixel Pitch | P15 (15mm) |
Beam Angle | 120° |
Grayscale | 256 levels |
Working Mode | Artnet / SD |
Operating Temperature | -20°C to +65°C |
Storage Temperature | -20°C to +65°C |
Applications
Application | Why This Screen Fits |
|---|---|
Commercial advertising | High transparency, lightweight, easy installation |
Shopping malls & commercial streets | Flexible shaping, eye‑catching displays |
Cultural & entertainment venues | Artnet control, dynamic effects |
Theaters & cinemas | Modular design, front maintenance |
Gymnasiums & sports venues | See‑through design, low wind resistance |
Corporate exhibition halls | Professional display quality, 256 grayscale |
Airports, train stations, subway stations | Durable, reliable, long lifespan |

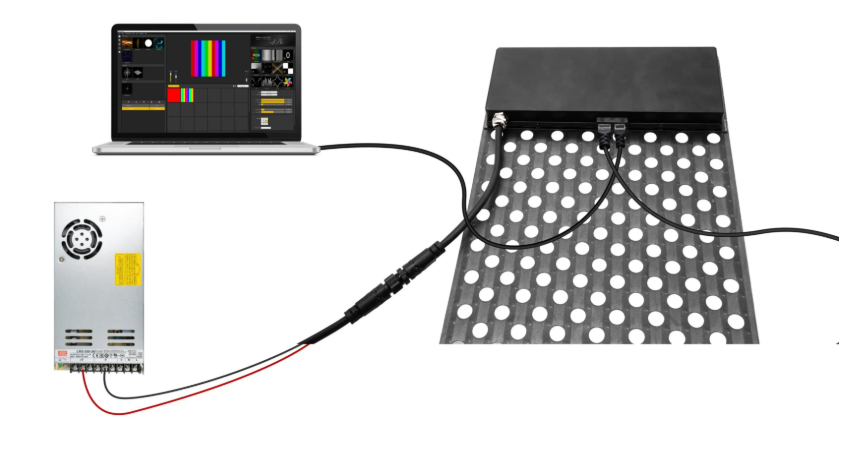

Installation Overview
Step | Action |
|---|---|
1 | Inspect the display module, connecting cables (signal and power), and connectors |
2 | Ensure power cable matches DC24V rated voltage (positive/negative polarity must not be reversed) |
3 | For layout, remove 5 pixels per space to match the 660‑pixel ribbon screen |
4 | Connect to the controller via network cable (signal input port) |
5 | For console connection, use a signal conversion board |
6 | Power on and configure via Artnet or SD card |
7 | Select effects, speed, and brightness via DMX channels |
Power recommendation: Use a DC power supply with ≥20% power margin to avoid voltage fluctuations.
Summary
Advantage | Benefit |
|---|---|
Plug‑and‑play | Built‑in controller, ready to use |
Flexible FPC | Bend, fold, roll — adapts to any shape |
High transparency | See‑through, low wind resistance |
Artnet control | 31 internal effects, SD card support |
256‑level grayscale | Smooth, detailed visuals |
Front maintenance | Easy servicing, reduced costs |
10m per roll | Extended coverage, fewer connections |
DC24V operation | Safe, energy‑efficient |
Availability
The new LED Flexible Screen P15 (XXA‑SCREEN‑P15) is available for order now. Custom lengths and configurations are available upon request.
👉 Write to me for samples, technical support, or a quote.
