Shenzhen, China – September 2026
Quick Answer

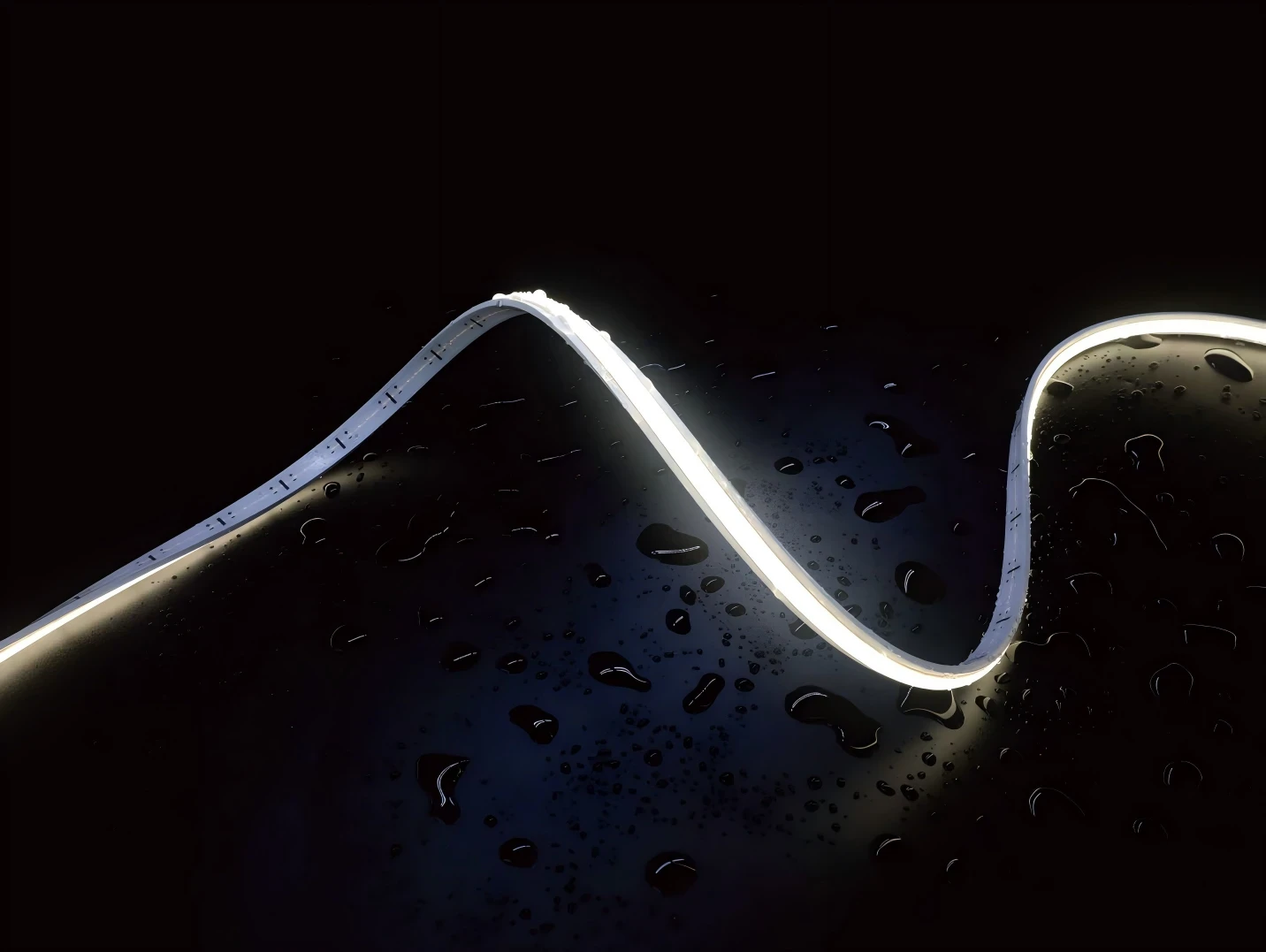

This Waterproof SOB (Side-of-Board) LED Strip Kit combines an 8mm ultra-narrow LED strip with a waterproof construction, available in either low-voltage (DC24V) or high-voltage driver-free (AC220V) configurations. The kit is designed as a complete solution for edge-lit applications where standard LED strips cannot fit — including cabinet edges, narrow channels, signage, and architectural accents. Each kit includes the SOB strip, waterproof connectors, and specification support for power supply matching.
What Makes This Kit a Complete Solution?
Most edge-lit LED strip projects require sourcing the strip, waterproofing, connectors, and power supply separately. This kit packages the essential components into a single, project-ready solution:
Component | What It Includes |
|---|---|
SOB LED Strip | 8mm ultra-narrow side-emitting strip |
Voltage Option | DC24V (low voltage) or AC220V (driver-free) |
Waterproof Protection | Proprietary SOB waterproof process |
Connectors | High-voltage quick connector (AC version) |
IP Rating Options | IP65, IP67, IP68 available |
Color Temperature | 3000K, 4000K, or 6500K |
Specification Support | Power supply and controller matching |
Custom lengths, IP ratings, and color temperatures are available upon request.
Two Kit Configurations
Feature | Low-Voltage Version | High-Voltage Version |
|---|---|---|
Voltage | DC24V | AC220V (mains) |
Driver Required | Yes (external) | No — driver-free |
PCB Width | 8mm | 8mm |
LED Type | 2835 | 2835 |
LED Density | 240 LEDs/m | 240 LEDs/m |
Power | 8W/m | — |
Luminous Flux | 460–540 lm/m | — |
Luminous Efficacy | 58–68 lm/W | — |
CRI | ≥70 / ≥80 | — |
Color Temperature | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K |
Max Load Length | Per driver capacity | 50 meters |
Waterproof | IP-rated (customizable) | IP-rated |
Key advantage of the high-voltage version: No external driver required. Connect directly to AC mains power — simpler installation, lower system cost, and longer runs up to 50 meters.
Key Features
1. Ultra-Narrow 8mm Width – Fits Tight Spaces
The 8mm PCB width allows installation in places where standard LED strips cannot fit:
Thin cabinet edges
Narrow channels
Slim architectural accents
Signage and channel letters
2. Waterproof Protection – Indoor & Outdoor Use
Both versions feature a proprietary waterproof SOB process, protecting the LEDs and circuitry from moisture, dust, and splashing.
Suitable for:
Outdoor signage
Bathroom and kitchen lighting
Covered patio installations
Damp industrial environments
3. High-Voltage Option – Driver-Free Operation
The AC220V version eliminates the need for an external power supply:
Benefit | Why It Matters |
|---|---|
Simpler installation | Fewer components to mount and wire |
Lower system cost | No driver purchase required |
Longer runs | Supports up to 50 meters in a single run |
4. Multiple Color Temperature Options
Color Temperature | Appearance |
|---|---|
3000K | Warm white — cozy, inviting |
4000K | Neutral white — clean, natural |
6500K | Cool white — bright, energetic |
CRI options of ≥70 or ≥80 ensure good color rendering for most applications.
5. SOB vs Traditional SMD
Aspect | Traditional SMD | SOB (Side-of-Board) |
|---|---|---|
LED mounting | Top of PCB | Side edge of PCB |
PCB width | 10mm or wider | As narrow as 8mm |
Light direction | Upward | Sideways / edge-emitting |
Best for | General illumination | Edge-lit, narrow-profile applications |
For designers working with limited space or requiring edge-emitting light, SOB offers a distinct advantage.
Applications
Application | Recommended Version |
|---|---|
Cabinet and under-shelf lighting | DC24V (safe, low voltage) |
Signage and channel letters | Both versions (narrow 8mm width) |
Outdoor building outlines | AC220V (long runs, simpler wiring) |
Bathroom vanity lighting | DC24V (safer in wet areas) |
Retail display cases | Both versions (uniform side-emission) |
Cove and accent lighting | DC24V (dimmable options available) |
Summary
Advantage | Benefit |
|---|---|
Complete kit | SOB strip, connectors, and specification support |
Ultra-narrow 8mm width | Fits where standard strips cannot |
Waterproof protection | Suitable for damp and outdoor environments |
Two voltage options | DC24V (low voltage) or AC220V (driver-free) |
Driver-free AC version | No external power supply needed |
Up to 50m run (AC) | Long runs without voltage drop |
Multiple CCT options | 3000K / 4000K / 6500K |
Customizable IP ratings | IP65 / IP67 / IP68 available |
Looking for a Complete Waterproof SOB LED Strip Kit?
This kit is available in DC24V and AC220V configurations, with custom lengths, IP ratings, and color temperatures. We can help you specify the right kit for your edge-lit or outdoor project.
👉 Write to me for samples, technical support, or a quote.
