Outdoor holiday lighting installations face harsh environmental challenges: rain, snow, temperature extremes, and UV exposure. Choosing the right connectors is critical for reliable operation and easy maintenance. This guide compares the most popular connector types and helps you select the best solution for your display.
Environmental Challenges
What Outdoor Connectors Must Withstand
Challenge | Specific Threats |
|---|---|
Water & Moisture | Direct rain, snow/ice, condensation, ground-level puddles |
Temperature Extremes | Winter lows (-40°C), summer highs (+60°C+), thermal cycling |
UV Radiation | Plastic degradation, color fading, material brittleness |
Mechanical Stress | Wind-induced vibration, ice loading, accidental impacts |

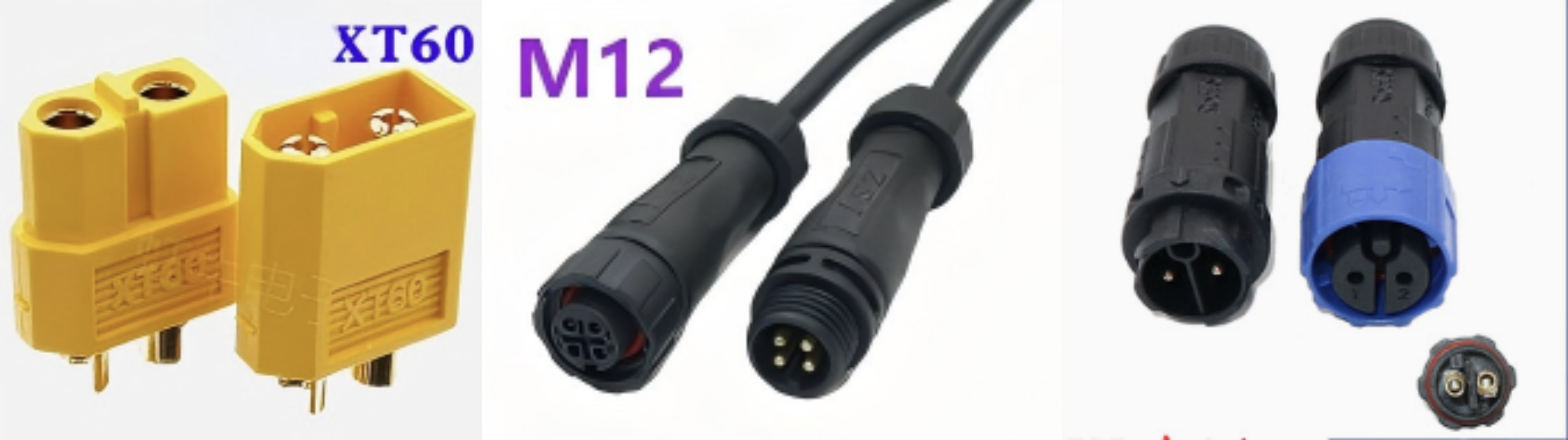

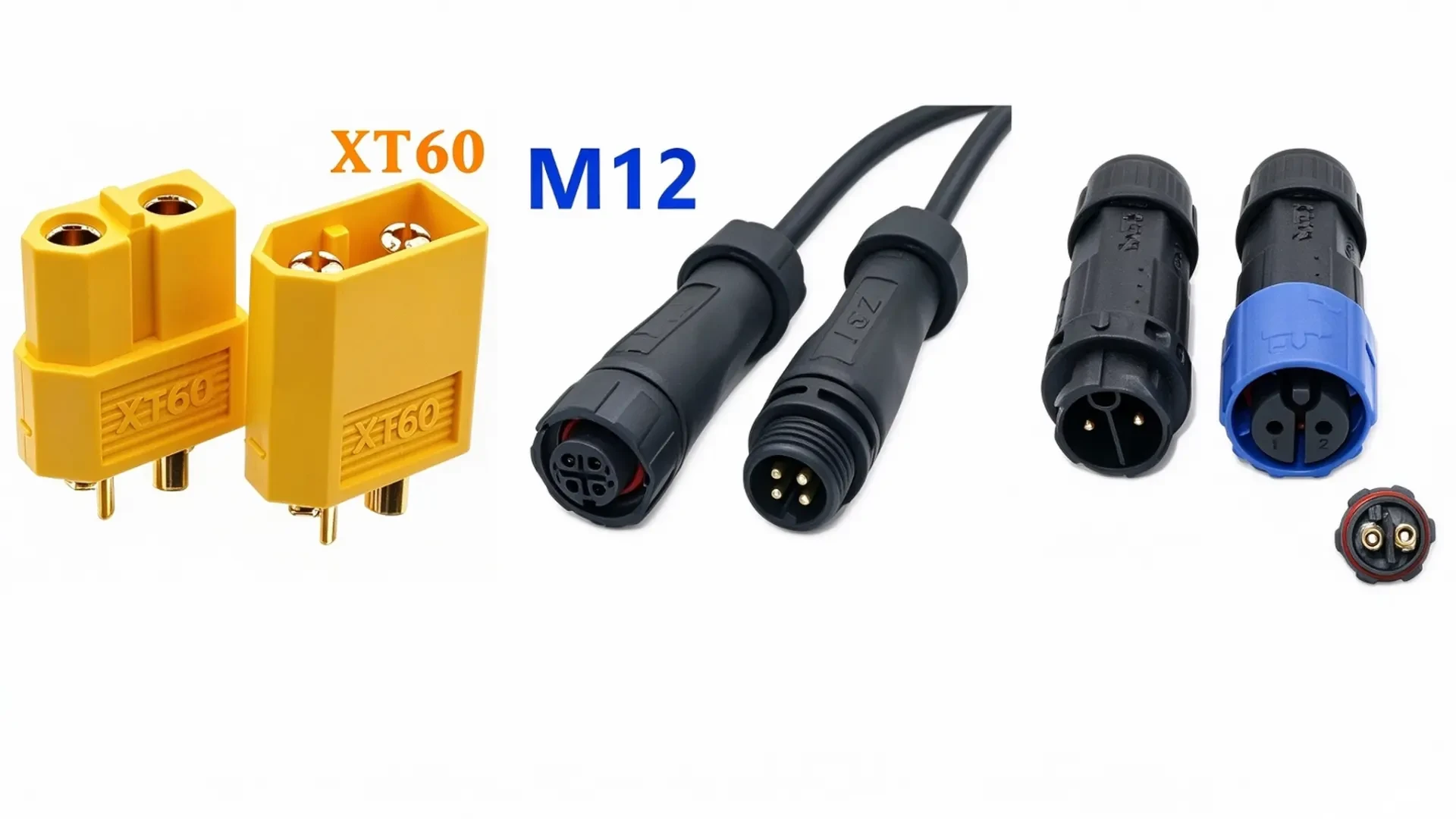

Connector Types Compared
M12 Circular Connectors
Overview: Industrial-grade circular connectors originally designed for sensor wiring, now popular in outdoor LED installations.
Specifications
Diameter: 12mm locking thread
Pins: 3, 4, 5, 6, 8, or 12 contacts
Current rating: 4A (standard), 8A (coded)
IP rating: IP67 or IP68 standard
Advantages
True waterproof (IP67/IP68 when mated)
Secure screw-locking mechanism (vibration-proof)
Polarized (cannot misconnect)
Wide temperature range (-40°C to +85°C)
UV-resistant materials available
Disadvantages
Higher cost ($8–$20 per connector pair)
Smaller wire gauge (typically 22–26 AWG)
Requires tools for field termination
Best Applications: Permanent outdoor installations, high-reliability requirements, harsh environments
XT60 Connectors
Overview: Hobbyist-grade connector popular in RC and drone communities, used in LED installations for power connections.
Specifications
Housing: Nylon fiber reinforced
Contacts: 2 (power only)
Current rating: 60A continuous
IP rating: None (not waterproof)
Advantages
High current capacity (60A)
Low cost ($0.50–$2 per pair)
Easy to solder (no special tools)
Compact and lightweight
Disadvantages
NOT waterproof (must be housed in enclosure)
No locking mechanism (pull-apart connection)
Limited to 2 conductors (power only)
Nylon housing degrades in UV over time
Best Applications: Indoor power distribution, battery connections, inside waterproof enclosures
Plug-and-Play LED Connectors
Overview: Proprietary connector systems designed specifically for LED strip and holiday lighting.
Common Types: 2-pin, 3-pin, 4-pin for single-color, RGB, RGBW; snap-on or screw-terminal versions
Specifications
Current rating: 2–6A
IP rating: IP65–IP68 (when properly sealed)
Advantages
Tool-free installation (snap-on versions)
Designed for LED strip form factor
Weatherproof when properly installed
Low profile and affordable ($1–$5 per connector)
Disadvantages
Current limited (not suitable for high-power runs)
Quality varies significantly by manufacturer
May require heat-shrink for full waterproofing
Best Applications: Residential holiday displays, LED strip installations, seasonal decorations
Comparison Summary
Feature | M12 | XT60 | Plug-and-Play |
|---|---|---|---|
Waterproof Rating | IP67/IP68 | None (requires enclosure) | IP65–IP68 |
Current Capacity | 4–8A | 60A | 2–6A |
Cost per Pair | $8–$20 | $0.50–$2 | $1–$5 |
Locking Mechanism | Screw thread | None (friction) | Snap or screw |
UV Resistant | Yes | No | Varies |
Field Termination | Tools required | Soldering | Tool-free |
Best For | Permanent outdoor | Indoor power | Seasonal displays |
Waterproofing Methods
Method | Pros | Cons |
|---|---|---|
Overmolding | Truly waterproof, professional | Permanent, requires special equipment |
Heat-Shrink Tubing | Inexpensive, good seal | Permanent (cut to disconnect) |
Silicone Potting | Excellent seal, strain relief | Messy, permanent, difficult to service |
Rubber Boots | Reusable, allows disconnection | Can be lost, adds bulk |
Self-Fusing Tape | Cheap, flexible, conforms to any shape | Degrades over time |
Installation Best Practices
Strain Relief
Secure cable on both sides of connector using zip-ties or clamps
Leave service loop (extra cable) for reconnection if needed
Avoid hanging connectors by their cables
Orientation
Mount connectors facing downward to prevent water pooling
Avoid upward-facing orientations (collects water)
Use drip loops before connectors
Sealing Technique
Clean and dry all surfaces
Apply dielectric grease to contacts (prevents corrosion)
Mate connectors fully (audible click for snap-types)
Apply outer seal (heat-shrink, boot, or tape)
Test seal before final installation (spray test with hose)
Application Recommendations
Installation Type | Recommended Connector | Rationale |
|---|---|---|
Residential Holiday (Seasonal) | Plug-and-play with heat-shrink | Low cost, adequate for seasonal use |
Commercial Display (Permanent) | M12 IP68 | Reliability critical, labor cost exceeds connector cost |
Temporary Event (Short-term) | XT60 inside waterproof enclosures | Quick deployment, reusable |
Coastal/Marine | M12 IP68 (stainless steel option) | Superior corrosion resistance |
Troubleshooting Guide
Problem | Likely Cause | Solution |
|---|---|---|
Intermittent connection | Loose mating or corrosion | Re-seat connector, clean contacts |
Complete failure | Broken wire or water intrusion | Test continuity, inspect for moisture |
Corrosion | Inadequate sealing | Clean contacts, apply dielectric grease, upgrade seal |
Voltage drop | Undersized connectors | Add power injection or thicker cable |
Maintenance Schedule
Monthly (During Season)
Visual inspection for damage or loosening
Check for water intrusion
Verify all connections secure
Annually (Off-Season)
Disconnect and inspect all connectors
Clean contacts with electrical contact cleaner
Reapply dielectric grease
Replace any damaged connectors
After Severe Weather
Immediate inspection after storms
Check for wind damage or water intrusion
Test all zones before assuming functionality
