Published: September 2026 | Category: Custom Strip
Quick Answer
The 20×14mm Top-View Neon Flex is a custom strip solution designed for applications requiring a 12mm PCB width, RGBW color control (including a dedicated 6000K white), and IP67–68 protection. With 60 LEDs/m, DC24V operation, and 10m per roll, it delivers uniform top-facing illumination suitable for pool edges, facades, and wet environments.
Introduction: A Custom Strip for a Pool Project
When a friend of mine, Jean, came to me with a request from his overseas client, the requirement was straightforward: neon lighting for a swimming pool.
The client needed a strip that could:
Fit a 12mm PCB width
Provide even, forward-facing light
Withstand a wet pool environment
Based on these requirements, I recommended the 20×14mm Top-View Neon Flex — a custom strip solution that matched the application.

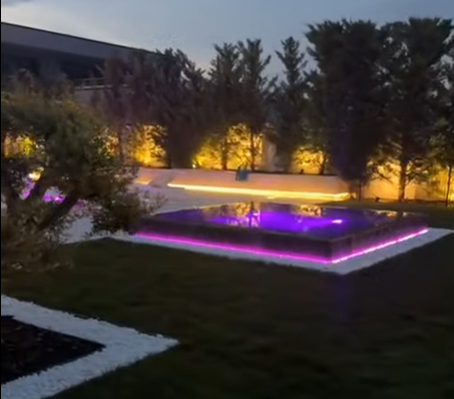

Project showcase video: Dive into the Magic of Neon Lights!

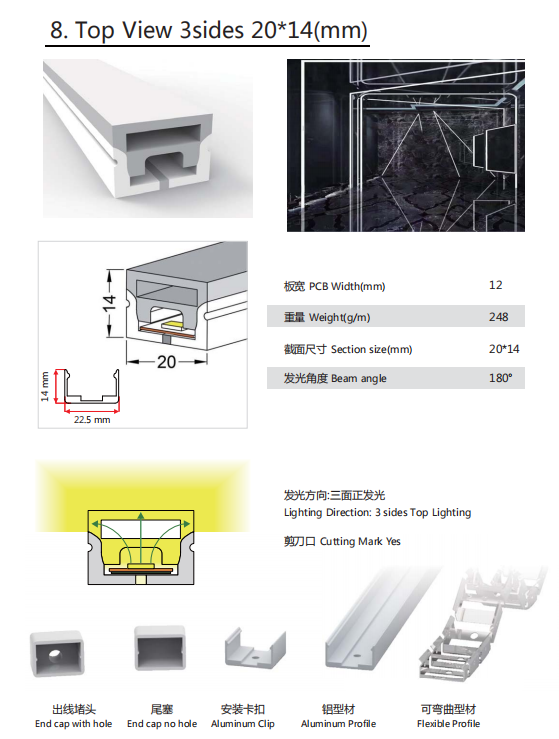

Product Overview: 20×14 Top-View Neon Flex
Feature | Specification |
|---|---|
PCB Width | 12mm |
LED Type | SMD5050 RGBW (6000K) |
LED Density | 60 LEDs/m |
Voltage | DC24V |
Power | 19.2W/m |
IP Rating | IP67–68 |
Connection | Both ends connection cable / 5 wires |
Roll Length | 10m per roll |
Neon Dimensions | 20mm width × 14mm height |
Beam Angle | 120° |
Lighting Direction | Top View |
Weight | 249g/m |
Cutting Mark | Yes |
Key Features
1. 12mm PCB Width – Compatible with Standard Neon Profiles
The 12mm PCB width is a common specification that fits a wide range of neon profiles and mounting channels. This makes the strip easy to integrate into standard installations.
2. SMD5050 RGBW with 6000K White – Full Color Plus Pure White
The SMD5050 RGBW LED integrates red, green, blue, and a dedicated 6000K white chip in a single package. This delivers:
Full-color effects for dynamic lighting
Pure, clean 6000K white for daily use
No color mixing artifacts
3. 60 LEDs/m – Even, Uniform Illumination
With 60 LEDs per meter, the strip provides:
Smooth, continuous light
No visible hotspots or dark spots
Uniform illumination across the entire run
4. DC24V Operation – Long Runs, Reduced Voltage Drop
Operating at DC24V with 19.2W/m power consumption offers:
Reduced voltage drop over long distances
Consistent brightness across the 10m roll
Compatibility with standard 24V power supplies
5. IP67–68 Protection – Suitable for Wet Environments
The IP67–68 rating ensures the strip is protected against:
Dust and moisture
Temporary immersion in water
Splashing and wet conditions
This makes it suitable for pool edges, facades, and other demanding environments.
6. Top-View 20×14mm Neon Profile – Clean, Forward-Facing Light
The 20×14mm top-view neon profile provides:
A clean, continuous line of light
120° beam angle for even distribution
A professional, finished appearance
7. 10m per Roll – Extended Coverage
Each roll contains 10 meters of neon flex, reducing the number of connections and simplifying installation for larger projects.
8. Cutting Mark – Field Adjustable
The strip features cutting marks, allowing precise length adjustment for custom installations.
Installation Accessories
The 20×14 neon flex system supports a range of accessories:
Accessory | Purpose |
|---|---|
End cap with hole | For cable exit |
End cap no hole | For sealed termination |
Aluminum clip | Secure mounting |
Aluminum profile | Rigid straight runs |
Flexible profile | Bending for curved installations |
Applications
Application | Why This Strip Fits |
|---|---|
Pool edge lighting | IP67–68, top-view illumination |
Facade lighting | RGBW color, uniform light |
Architectural accents | Clean neon profile |
Wet environments | Waterproof construction |
Commercial spaces | 24V DC, long runs |
Technical Specifications
Parameter | Value |
|---|---|
PCB Width | 12mm |
LED Type | SMD5050 RGBW |
Color Temperature | 6000K (white channel) |
LED Density | 60 LEDs/m |
Voltage | DC24V |
Power | 19.2W/m |
IP Rating | IP67–68 |
Beam Angle | 120° |
Lighting Direction | Top lighting |
Roll Length | 10m |
Weight | 249g/m |
Cutting Mark | Yes |
Summary
Advantage | Benefit |
|---|---|
12mm PCB width | Compatible with standard profiles |
SMD5050 RGBW (6000K) | Full color plus pure white |
60 LEDs/m | Even, uniform illumination |
DC24V, 19.2W/m | Long runs, reduced voltage drop |
IP67–68 | Suitable for wet environments |
20×14mm top-view profile | Clean, forward-facing light |
10m per roll | Extended coverage |
Cutting mark | Field adjustable |
