Best-Selling 60mm RGB Pixel Cabochon Light – 18 LEDs, 360° Beam, IP66, DC24V
Shenzhen, China – September 2026
Xuanan Lighting is pleased to present our best-selling 60mm RGB Pixel Cabochon Light (Model: XXA-6018-360D) — a high-brightness, full-color addressable lighting solution designed for both indoor and outdoor applications.
Featuring 18 × SMD5050 RGB LEDs with a 360° beam angle, powered by DC24V at 4.32W max per unit, and controlled by GS8206 or UCS2903 IC chips, this pixel light delivers vibrant, dynamic effects including running water, chasing, and scanning. With an IP66 waterproof rating, it performs reliably in rain, dust, and high-humidity environments.
What Makes This Pixel Cabochon Light a Best Seller?
Feature | Specification |
|---|---|
Model | XXA-6018-360D |
Diameter | 60mm |
Installation Hole Size | 19mm |
Light Source | 18 × SMD5050 RGB LEDs |
LED Layout | Front 12 LEDs + Back 6 LEDs |
Beam Angle | 360° |
IC Chip | GS8206 / UCS2903 (full color) |
Operating Voltage | DC24V |
Power Consumption | 4.32W max per unit |
Housing | Transparent PC cover |
Waterproof Rating | IP66 |
Lifetime | ≥50,000 hours |
Working Temperature | -20°C to +50°C |
Storage Temperature | -30°C to +70°C |
Key Features
1. High Brightness & Full Color
18 × SMD5050 RGB LEDs deliver vibrant, high-intensity illumination with full-color addressable control. Each pixel can be individually controlled for complex animations and dynamic effects.
2. 360° Beam Angle – Uniform Illumination
The spherical transparent design provides uniform light output from all angles with no dark spots. This makes it ideal for applications where the light is viewed from multiple perspectives.

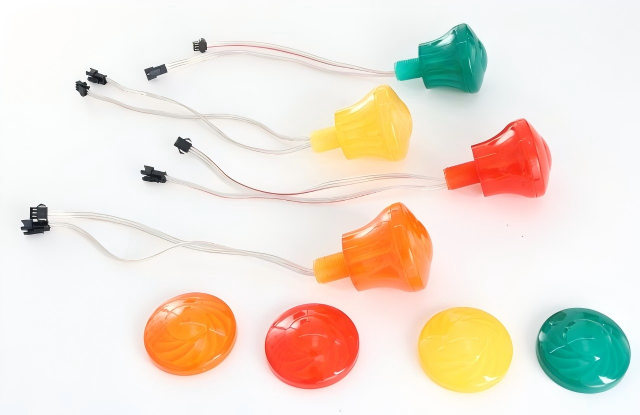

3. Dual Cover Options – Linear or Spiral
Available in linear transparent or spiral transparent cover designs, allowing you to choose the visual effect that best suits your project.
Cover Type | Visual Effect |
|---|---|
Linear Transparent | Clean, uniform light distribution |
Spiral Transparent | Unique, textured light pattern |
4. IP66 Waterproof – Outdoor-Ready
Sealed with silicone glue protection, this pixel light is suitable for outdoor use in rain, dust, and high-humidity environments. The IP66 rating ensures reliable performance in demanding conditions.
5. Easy Installation – 19mm Drill Hole Mounting
Designed for 19mm drill hole mounting, installation is quick and straightforward. An optional aluminum groove is available for secure wall mounting.
6. Robust Construction – UV-Resistant & Thermostable
The UV-resistant, thermostable, and cold-resistant PVC shell combined with PCB board and connector cables ensures long-term durability.
7. High Performance – Low Power, Long Lifespan
Low power dissipation – 4.32W max per unit
Long lifespan – ≥50,000 hours
Low voltage operation – DC24V
Minimal lumen depreciation – consistent brightness over time
8. Wide Controller Compatibility
Compatible with SD controllers, DMX controllers, Artnet, and other SPI-based systems, offering flexible integration into existing control setups.
Technical Specifications
Parameter | Specification |
|---|---|
Model | XXA-6018-360D |
Diameter | 60mm |
Installation Hole | 19mm |
LED Type | 18 × SMD5050 RGB |
LED Layout | Front 12 + Back 6 |
Beam Angle | 360° |
IC Chip | GS8206 / UCS2903 |
Input Voltage | DC24V |
Power | 4.32W max per unit |
Waterproof | IP66 |
Lifetime | ≥50,000 hours |
Operating Temperature | -20°C to +50°C |
Storage Temperature | -30°C to +70°C |
Connector | 3-pin / 4-pin JST (male & female) |
Optional Connector | Waterproof connector |
Pin Configuration
3-Pin | 4-Pin |
|---|---|
DAT, DC24V+, GND | DAT 1, DAT 2, DC24V+, GND |
Applications
Application | Why This Pixel Light Fits |
|---|---|
Amusement parks & theme parks | 360° glow, IP66 waterproof, dynamic effects |
Shopping malls & retail displays | Eye-catching, vibrant colors |
Street & building facade lighting | Uniform illumination, durable |
Billboards & signage | Full-color addressable control |
Window displays | Compact size, easy installation |
Landscape & architectural accents | 360° beam, outdoor-ready |
Entertainment venues (clubs, KTV, bars) | Dynamic effects, controller compatibility |
Installation Overview
Step | Action |
|---|---|
1 | Drill a 19mm hole at the mounting location |
2 | Insert aluminum groove (optional) and screw onto wall |
3 | Mount the pixel light into the hole |
4 | Connect daisy-chain via male/female connectors |
5 | Connect to a compatible controller (SD/DMX/Artnet) and DC24V power supply |
6 | Power on and test |
Important Notes:
Power supply must be DC24V
Do not exceed 25V input voltage
Maximum run length depends on power supply capacity — contact technical support for guidance
Customization Options
We offer extensive customization for this best-selling pixel light:
Option | Choices |
|---|---|
Cover Type | Linear transparent / Spiral transparent |
Connector Type | 3-pin / 4-pin JST / Waterproof connector |
Aluminum Groove | Color and size customizable |
String Length | Customizable |
Pitch Spacing | Customizable |
Summary
Advantage | Benefit |
|---|---|
18 × SMD5050 RGB LEDs | High brightness, vibrant colors |
360° beam angle | Uniform illumination, no dark spots |
GS8206 / UCS2903 IC | Full-color addressable control |
IP66 waterproof | Outdoor-ready, reliable |
Dual cover options | Linear or spiral light effects |
19mm drill hole mounting | Easy installation |
50,000-hour lifespan | Long-term reliability |
Wide controller compatibility | SD, DMX, Artnet |
Related Content
Availability
The best-selling 60mm RGB Pixel Cabochon Light (XXA-6018-360D) is available for order now. Custom cover types, connectors, aluminum groove colors, and string lengths are available upon request.
👉 Contact Us Today for samples, technical support, or a quote.
