Custom 360° 60mm Single White Cabochon Light – 2700K, DC24V, 18 LEDs

At ElisaCustom, we understand that not every project requires complex color‑changing effects. Sometimes, the perfect solution is a reliable, warm white light that does exactly what it needs to do — and nothing more.

This was exactly the case with a recent request from our client, Robert. He needed a lighting solution for a wedding venue signage project. The goal was simple: create a warm, inviting glow that would complement the romantic atmosphere of the event.

The Challenge: From SPI Pixel to Single White

Initially, Robert’s project could have been served by our standard SPI pixel lights (commonly featuring UCS1903 or GS8206 ICs for full‑color effects). However, for his specific application, he didn’t need color‑changing or pixel‑mapping capabilities. He needed something more focused:

Industry Context: While our standard products often feature SPI‑controlled RGB pixels (e.g., UCS1903/GS8206) for dynamic color effects, Robert’s application required a single white without ICs. This product is versatile and commonly used across various applications, from wedding signage to architectural accents.

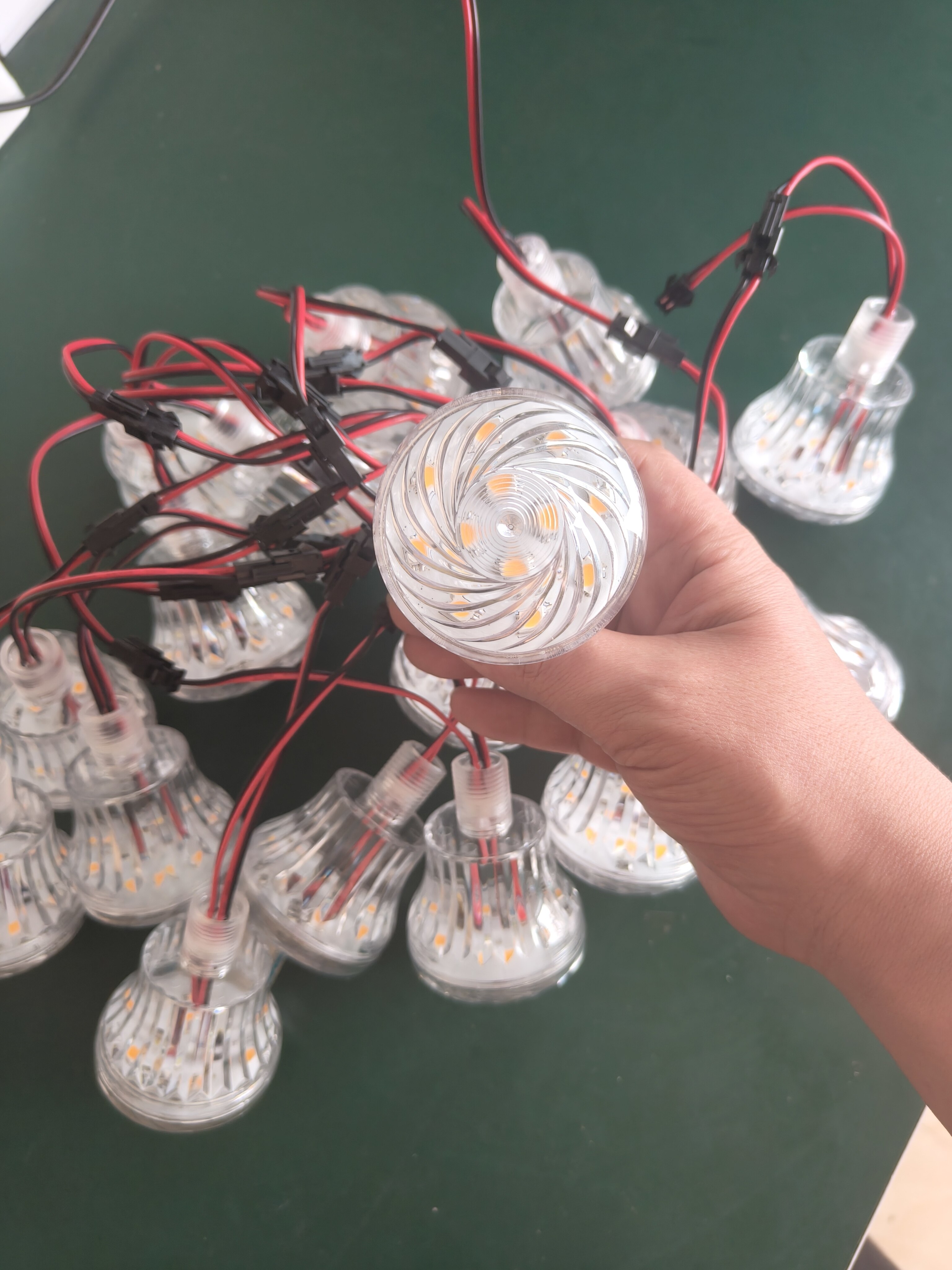

Our Solution: A Custom Single‑White Cabochon Light

We custom‑designed a 360° 60mm Single White Cabochon Light specifically for Robert’s wedding signage project, using:

• 18 SMD5050 LEDs (12 front + 6 back) for true 360° light distribution

• Warm white 2700K for a cozy, romantic glow

• DC24V for safe, efficient operation

• No IC / non‑addressable for simplicity and reliability

Key Features

1. True 360° Light Distribution

With 12 LEDs on the front and 6 LEDs on the back, this pixel light provides:

• Full, even illumination from every angle

• No dark spots or shadows

• Wide visibility — ideal for signage and architectural outlines

2. Warm White 2700K – Cozy, Inviting Glow

The 2700K color temperature delivers a soft, warm light that creates a welcoming atmosphere — perfect for:

• Hospitality and retail environments

• Decorative signage

• Architectural accents

• Event and wedding lighting (Robert’s specific application)

3. No IC / Non‑Addressable – Simplified Design

Unlike our standard SPI pixel lights, this custom version does not include an IC. This offers:

• Lower cost – fewer components

• Simpler installation – no programming required

• Reliability – fewer points of failure

• Perfect for single‑color applications – where dynamic effects are not needed

4. 19mm Mounting Hole – Standard Fit

The 19mm mounting hole is a standard size, making it:

• Easy to integrate into existing installations

• Compatible with most signage and architectural fixtures

• Quick to install with minimal preparation

5. 2‑Pin Separated Connector – Simple Wiring

The 2‑pin separated non‑waterproof male/female connector offers:

• Easy daisy‑chaining

• Quick connection and disconnection

• Clear polarity identification

6. Compact 60mm Diameter – Versatile Size

The 60mm size is large enough to be visible while remaining compact enough for:

• Channel letters and signage

• Building outlines

• Decorative light strings

• Retail displays

• Wedding and event decorations

Applications

This versatile cabochon light is suitable for a wide range of applications:

Real Customer Case Studies:

Best-Selling 60mm RGB Pixel Cabochon Light – 18 LEDs, 360° Beam, IP66, DC24V

Customization Options

We offer extensive customization for this product:

Installation Overview

Note: This is a non‑waterproof version, suitable for indoor or protected outdoor applications only.
