Quick Answer
This 3625 3D Wall Washer Kit combines a 36×25mm flexible LED strip with specialized horizontal and vertical bending capability, available in RGB512 or single-color configurations. Operating at DC24V with 24W/m power and IP67 waterproofing, the kit delivers uniform wall-washing illumination for architectural facades, bridge outlines, and curved structures. The kit includes the LED strip, aluminum mounting profiles, adjustable brackets, and end caps — providing a complete, installation-ready solution.
What Makes This Kit a Complete Solution?
Most 3D wall washer projects require sourcing the strip, mounting hardware, and accessories separately. This kit packages the essential components into a single, project-ready solution:
Component | What It Includes |
|---|---|
LED Strip | 3625 3D flexible strip (RGB512 or single color) |

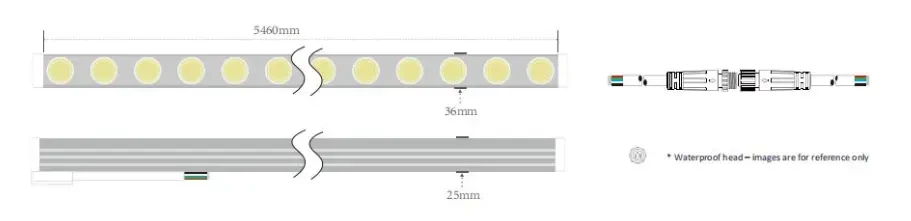

Profile | 36×25mm flexible housing |
Mounting | Aluminum profile, clips, adjustable bracket |
End Caps | Bottom exit cap, tail plug |
Control Compatibility | DMX512 (via controller) |
Waterproof | IP67 rated |
Two Configuration Options
Feature | RGB512 Version | Single Color Version |
|---|---|---|
LED Type | SMD5050 RGB | SMD5050 |
LED Density | 24 LEDs/m | 24 LEDs/m |
Voltage | DC24V | DC24V |
Power | 24W/m | 24W/m |
Control IC | TM512 | TM512 |
Beam Angle | 20°/30°/25°×45° | 20°/30°/25°×45° |
IP Rating | IP67 | IP67 |
Cutting Length | 250mm | 250mm |
Max Length | 5m | 5m |
Bending | Horizontal & vertical | Horizontal & vertical |
Single Color Photometric Data
Color Temperature | CRI | Luminous Flux | Efficacy |
|---|---|---|---|
3000K ±150 | 80 | 1600 lm | 64 lm/W |
4000K ±200 | 80 | 1700 lm | 68 lm/W |
6000K ±300 | 80 | 1550 lm | 62 lm/W |
RGB512 Photometric Data
Color | Wavelength | Luminous Flux | Efficacy |
|---|---|---|---|
Red | 615–625nm | 193 lm | 23 lm/W |
Green | 515–525nm | 434 lm | 51 lm/W |
Blue | 465–470nm | 111 lm | 13 lm/W |
RGB Combined | — | 729 lm | 30 lm/W |
Key Features
1. 3D Bending – Horizontal and Vertical
The 36×25mm profile supports both horizontal and vertical bending, allowing installation on:
Curved building facades
Complex architectural contours
Irregular structures
3D artistic installations
Bending radius: Minimum horizontal bend radius ≥300mm; minimum vertical bend radius ≥400mm.
2. IP67 Waterproof – Outdoor-Ready
With an IP67 rating, this kit is suitable for:
Exterior facades
Bridge outlines
Landscape features
Wet environments
3. DMX512 Control (TM512 IC)
Both RGB and single-color versions use TM512 IC for DMX512 control.
Feature | Benefit |
|---|---|
DMX512 protocol | Compatible with standard lighting consoles |
Addressable segments | 250mm cutting unit |
Max length | 5 meters per run |
4. Complete Accessory Kit
Accessory | Dimensions | Weight |
|---|---|---|
Clip | 40.4 × 38 × 9.3mm | 18g |
Aluminum profile | 40.4 × 38 × 9.3mm (custom length) | 443g/m |
Adjustable bracket | 29 × 20 × 41mm | 15g |
End cap | Bottom exit | — |
Tail plug | — | — |
5. Thermal Performance
Temperature test data shows stable operation:
PCB temperature stabilizes at ~65°C after 30 minutes at 24W/m
Consistent thermal management across the run
6. Packaging
Parameter | Specification |
|---|---|
Reel length | 5m/roll |
Reel weight | 4570g/roll |
Carton size | 800×800×170mm |
Rolls per carton | 3 rolls |
Carton weight | 16.3kg |
Installation Guidelines
Power & Control
Consideration | Recommendation |
|---|---|
Power injection | At least one power feed every 5 meters of DMX strip |
Independent power | Do not share positive between different power supplies |
Load calculation | Follow manufacturer's max cascade length |
Arrow direction | Ensure all strips are aligned in the same direction |
Safety Notes
Low voltage DC only — requires AC-to-DC power supply; do not connect directly to AC110/220V
Grounding — ensure proper grounding before power-on
No twisting — avoid twisting the strip
No hanging by power cable — do not suspend the strip by its power wire
No stepping — do not step on the strip
Avoid sharp bends — minimum bend radius ≥300mm/400mm
Applications
Application | Why This Kit Fits |
|---|---|
Building facades | 3D bending for curved surfaces |
Bridge outlines | IP67, long runs, DMX control |
Architectural accents | RGB512 or single color options |
Themed environments | DMX512 for dynamic effects |
Landscape lighting | Waterproof, flexible installation |
Historic building illumination | Warm white 3000K option, uniform wash |
Summary
Advantage | Benefit |
|---|---|
3D horizontal & vertical bending | Fits complex architectural shapes |
RGB512 or single color | Choose color or tunable white |
IP67 waterproof | Outdoor and wet environments |
DMX512 control (TM512) | Professional lighting integration |
24W/m power | Bright, even illumination |
Complete accessory kit | Clips, profile, bracket, end caps included |
Stable thermal performance | ~65°C PCB temperature at 24W/m |
