Shenzhen, China – October 2026
ElisaCustom is pleased to announce the release of our new 75mm RGBW Pixel Light (Model: XXA-75551CRGBW-SPI/DMX) , available in two control protocol options: SPI (TM1824) and DMX. Featuring 17 high-brightness LEDs (12pcs SMD2835 + 5pcs RGB LED) in a 75mm diameter housing, 256-level grayscale, and single-point pixel control, this light delivers vibrant RGBW colors with exceptional clarity and smooth dimming.
Ideal for architectural facades, landscape lighting, and decorative pixel displays.
What Makes This 75mm RGBW Pixel Light Unique?
Parameter | Specification |
|---|---|
Model | XXA-75551CRGBW-SPI / XXA-75551CRGBW-DMX |

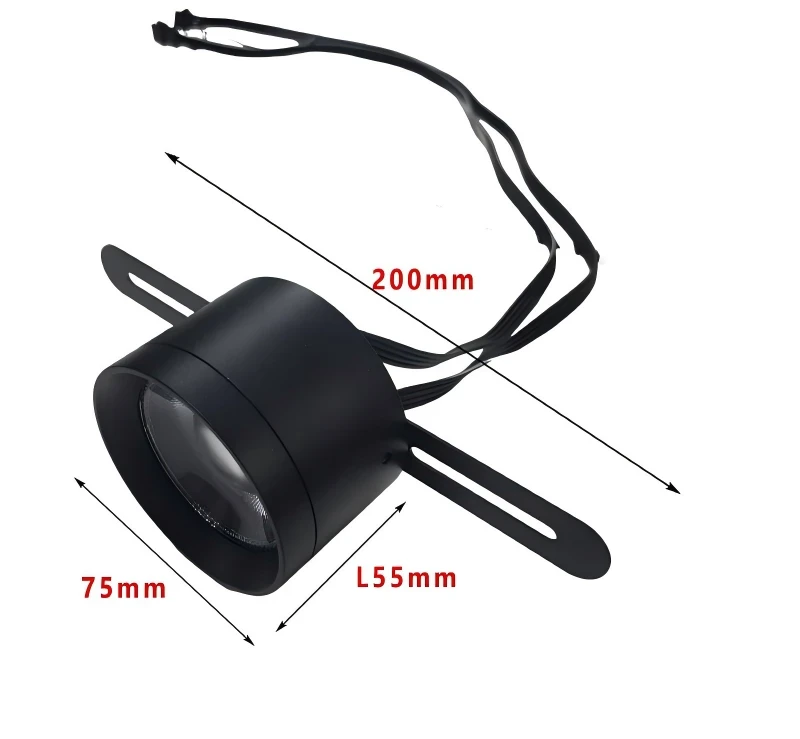

Diameter | 75mm |
Height | 55mm |
LED Type | 12pcs SMD2835 + 5pcs RGB LED (17 LEDs total) |
Color Configuration | RGBW (4-in-1) / RGB |
Control Protocol | SPI (TM1824) or DMX (UCS512CN) |
IC Chip | SPI version: TM1824 / DMX version: UCS512CN |
Voltage | DC24V |
Power | 24W per unit |
Grayscale | 256 levels |
Beam Angle | 36° / 120° |
Mounting Hole | 75mm |
Connector | 4-pin male/female connectors |
PCB Color | Black / White |
Working Temperature | -20°C to +60°C |
Two Control Options – Choose What Fits Your System
Model | IC Chip | Protocol | Best For |
|---|---|---|---|
XXA-75551CRGBW-SPI | TM1824 | SPI | Cost-effective systems, standard SPI controllers, dynamic pixel effects |
XXA-75551CRGBW-DMX | UCS512CN | DMX512 | Professional installations, integration with DMX lighting consoles |
Both models offer the same high-quality RGBW light output and physical specifications — the difference lies in the control protocol and IC chip, allowing you to choose the version that best integrates with your existing control system.
Key Features
1. RGBW 4-in-1 Color – Pure White & Vivid Colors
The combination of 12 SMD2835 LEDs and 5 RGB LEDs delivers:
RGBW color mixing — full-color effects with a dedicated white channel
Pure, clean white light — no color mixing artifacts
Vibrant RGB colors — for dynamic pixel displays
2. Dual Control Protocol Options – SPI (TM1824) or DMX
Protocol | IC Chip | Advantages |
|---|---|---|
SPI (TM1824) | TM1824 | Fast data transmission, cost-effective, ideal for pixel-mapping and dynamic animations |
DMX (UCS512CN) | UCS512CN | Industry-standard protocol, long-distance reliability, professional console integration |
3. Single-Point Pixel Control
Each unit is individually addressable, enabling:
Pixel-level control — precise color and brightness per point
Complex animations — chasing, flowing, and gradient effects
High-resolution displays — ideal for video mapping
4. 75mm Diameter with 75mm Mounting Hole
The 75mm size is ideal for:
Large-scale facade lighting
High-visibility pixel displays
Architectural accents — where larger light points are required
5. Dual Beam Angle Options
Beam Angle | Best For |
|---|---|
36° | Narrow spotlighting, focused accent lighting |
120° | Wide flood lighting, general illumination |
6. 4-Pin Connectors – Easy Daisy-Chaining
The 4-pin male/female connectors provide:
Simple daisy-chaining — extended runs with minimal wiring
Secure connections — reliable signal and power transmission
7. 256-Level Grayscale – Smooth Dimming
With 256 levels per channel, this pixel light delivers:
Ultra-smooth dimming — no visible step changes
Accurate color mixing — professional-grade transitions
Flicker-free performance — suitable for video recording
8. Flexible PCB Color – Black or White
PCB Color | Best For |
|---|---|
Black | Blends into dark backgrounds |
White | Reflects light for enhanced brightness |
Technical Specifications
Parameter | SPI Model | DMX Model |
|---|---|---|
Model | XXA-75551CRGBW-SPI | XXA-75551CRGBW-DMX |
IC Chip | TM1824 | UCS512CN |
Control Protocol | SPI | DMX512 |
LED Type | 12×SMD2835 + 5×RGB | 12×SMD2835 + 5×RGB |
Total LEDs | 17 per unit | 17 per unit |
Color | RGBW / RGB | RGBW / RGB |
Voltage | DC24V | DC24V |
Power | 24W per unit | 24W per unit |
Grayscale | 256 levels | 256 levels |
Beam Angle | 36° / 120° | 36° / 120° |
Mounting Hole | 75mm | 75mm |
Connector | 4-pin male/female | 4-pin male/female |
PCB Color | Black / White | Black / White |
Working Temperature | -20°C to +60°C | -20°C to +60°C |
Applications
Application | Why This Light Fits |
|---|---|
Architectural facades | RGBW color, 256-level grayscale |
Landscape lighting | 75mm size, IP-ready, dual beam angles |
Pixel displays | Single-point control, SPI or DMX options |
Commercial signage | Vibrant colors, high brightness |
Stage and event lighting | Professional control, smooth dimming |
Installation Overview
Step | Action |
|---|---|
1 | Mark and drill a 75mm mounting hole |
2 | Insert the pixel light into the hole |
3 | Connect the 4-pin male/female connectors for power and signal |
4 | Connect to a compatible SPI (TM1824) or DMX (UCS512CN) controller and DC24V power supply |
5 | Power on and test |
Summary
Advantage | Benefit |
|---|---|
SPI (TM1824) or DMX options | Choose the control protocol that fits your system |
17 LEDs (12+5) | High brightness, RGBW color mixing |
256-level grayscale | Smooth, professional dimming |
75mm diameter | Large, visible light points |
36° / 120° beam angles | Flexible for spot or flood lighting |
4-pin connectors | Easy daisy-chaining |
Black / white PCB | Match installation background |
Related Reading
New 25mm Pixel Bubble Tube Light – DC12V, WS2811/UCS1903, 360° Beam →
New D40mm 360° RGB Pixel Tube – SPI/DMX, 144 LEDs, DC12V/24V →
New 3D Neon Infinity Mirror – Endless Depth, Endless Possibilities →
Availability
The new 75mm RGBW Pixel Light (Models: XXA-75551CRGBW-SPI and XXA-75551CRGBW-DMX) is available for order now. Custom configurations are available upon request.
👉 Write to me for samples, technical support, or a quote.
