Custom 05×13 Neon with WS2815 RGB | 60 LEDs/m, DC12V, 1.2m

Shenzhen, China – September 2026

Nat came to us with a clear vision for his project: he needed WS2815 RGB neon strips in two different neon profiles. This article covers the 05×13 profile – a compact, side‑view neon that delivers reliable pixel control in a slim package.

The Challenge: WS2815 with 05×13 Neon

Nat’s project required consistent, individually addressable RGB lighting across two neon profiles. For the 05×13 size, the key requirements were:

Reliable pixel control – WS2815 with break‑point continuation
Compact form factor – 05×13 side‑view profile

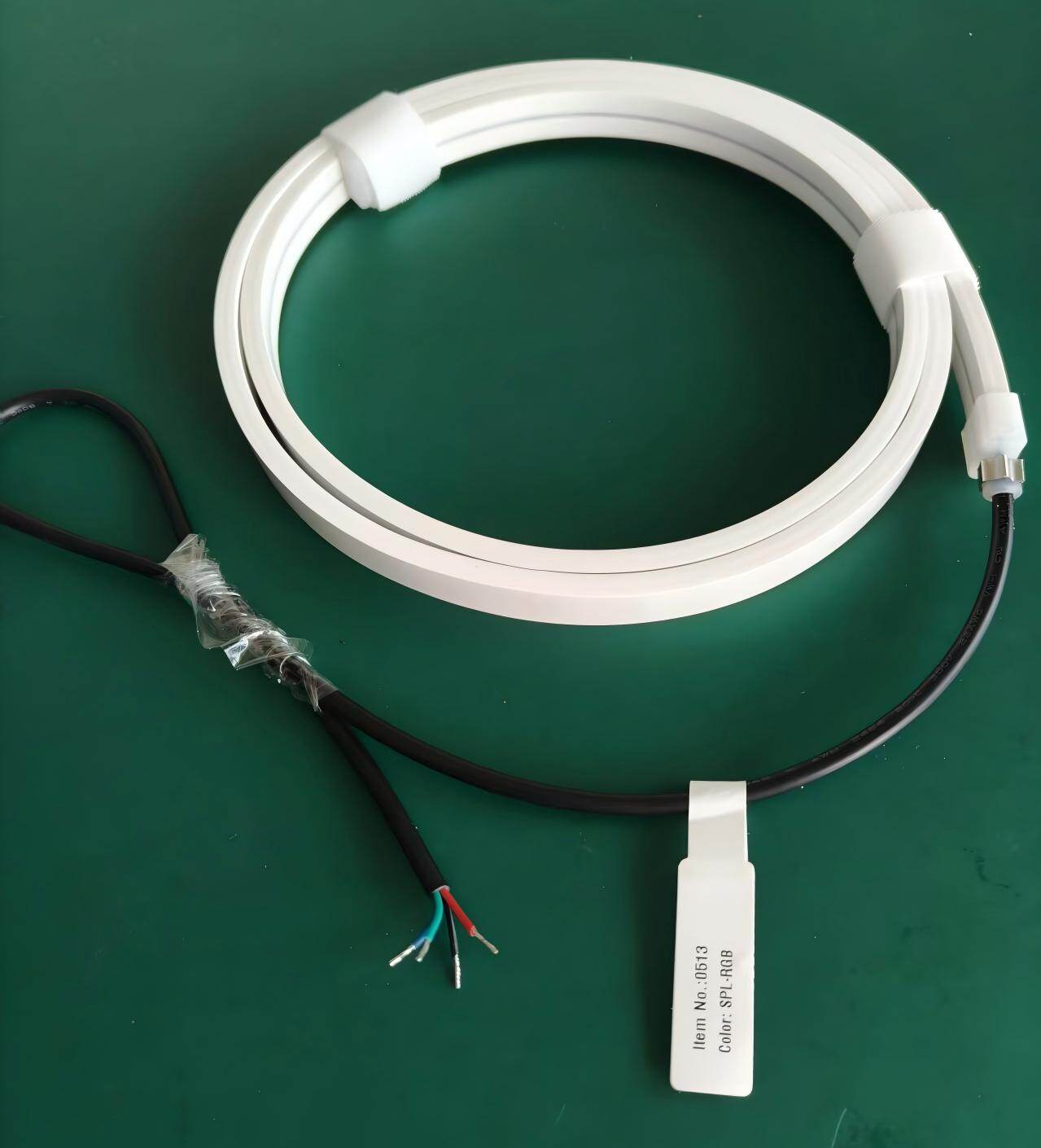

Ready‑to‑install configuration – 1.2m per piece with sealed ends
Input cable only – clean installation without output cable

We delivered a solution that met every specification.

Product Specifications

Parameter	Specification
LED Type	SMD5050 RGB
LED Density	60 LEDs/m
IC Type	WS2815 (built‑in, 60 ICs/m)
Voltage	DC12V
Power	18W/m
PCB Width	10mm
Neon Profile	Top View 05×13 (5mm × 13mm)
Length	1.2m per piece
Input Cable	50cm input cable
Output Cable	None (sealed neon end)
Sealing	Sealed neon end (no output connector)

Key Features

1. WS2815 Pixel Control – Break‑Point Continuation

The WS2815 IC is the key advantage of this strip:

Feature	Benefit
Individual pixel control	Each LED is independently addressable
Break‑point continuation	If one LED fails, the signal continues down the line – critical for reliable installations
12V operation	Reduced voltage drop compared to 5V systems
256 grayscale levels	Smooth, professional colour transitions

2. SMD5050 RGB LEDs – High Brightness, Vibrant Color

The SMD5050 LED package is a proven choice for RGB applications:

High brightness for visible impact
Wide 120° beam angle for even distribution
Excellent colour saturation and mixing

3. 05×13 Side‑View Neon – Slim, Discreet Profile

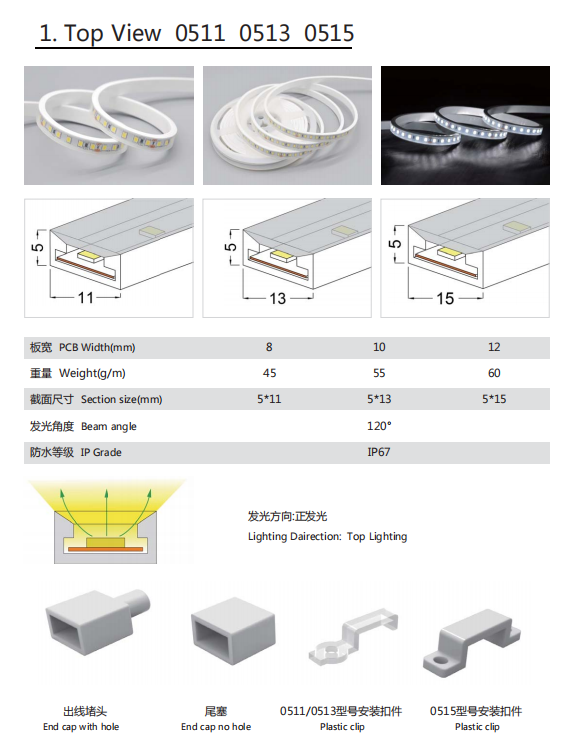

The Top View 05×13 neon housing offers:

Compact 5mm × 13mm cross‑section – fits tight spaces
Side‑view light emission – ideal for architectural outlining
Clean, professional appearance for exposed installations

4. 1.2m per Piece – Project‑Ready Length

Nat specified 1.2m as the required length, with:

50cm input cable – easy connection to controller or power supply
No output cable – the neon end is sealed for a neat finish
Factory‑sealed termination – reduces potential failure points

Why WS2815 for This Project?

Feature	Benefit for Nat’s Project
Dual‑signal redundancy	Ensures reliability even if one pixel fails
12V operation	Consistent brightness across 1.2m sections
Wide compatibility	Works with standard SPI controllers
Proven reliability	Widely used in architectural and stage lighting

Applications for 05×13 WS2815 Neon

Application	Why It Fits
Architectural outlining	Slim profile, side‑view emission
Signage and channel letters	Pixel control for dynamic effects
Display cases	Discreet installation
Stage and event lighting	WS2815 reliability, vibrant colour
Cove lighting	Compact size fits tight spaces

Summary

Advantage	Benefit
WS2815 IC	Individual pixel control, break‑point continuation
60 SMD5050 LEDs/m	High brightness, vibrant RGB
05×13 side‑view neon	Slim, discreet profile
DC12V operation	Reduced voltage drop
1.2m per piece	Ready‑to‑install length
50cm input cable	Easy connection
Sealed neon end	Clean, professional finish

Looking for Custom WS2815 Neon?

Nat’s project required two neon profiles – this article covers the 05×13 version. If you need a similar solution for your application, we can help.

👉 Write to me for samples, technical support, or a quote.
